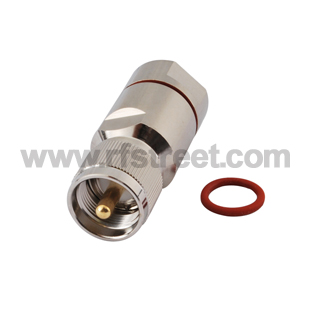

UHF coaxial RF connectors were one of the first RF connector series to be developed.. The 5/8"-24 thread coupling and clamp, crimp, twist-on, and solder terminations give the UHF the flexibility that has kept it one of the most popular coaxial connectors over the years.

Among the many applications of this low cost, low frequency device are antenna connections for CB radios, public address systems, audio, video, mobile radio, and test equipment.


Technical characteristics

MATERIAL & PLATING
Shell ..............brass ...............nickel-plated
Contact pin ........brass..............gold plated
Socket............. beryllium.......... gold plated
insulator ..........PTFE or PE
Crimping suite..... copper alloy......... nickel-plated

APPLECABLE STANDARD
IEC 60169-12;
GB/T 15888.

Offer custom:

If you require a different mounting style, we will be happy to consider your requirements to provide a working solution.
