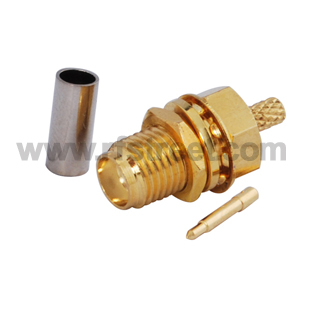

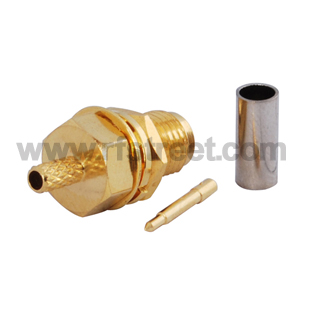

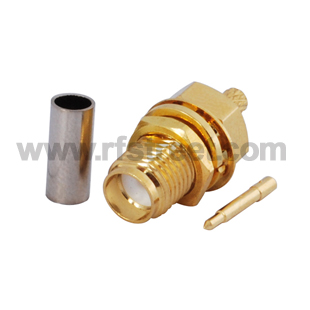

RP-SMA Crimp Jack(male pin) bulkhead connector for LMR100 medium
Model: S02-BH316-11BS01
    QTY 1+10+100+500+ More
    Price each. $1.00$0.90$0.81$0.73 Ask
    Saving% 0% 10%19%27% Ask
Description
Product parameters:
    Product Series: SMA  Product Type: Cable mount
    Application: Crimp  Body Plating: Goldplated
    Cable Type: RG174,RG-188A,LMR100,RG316  Body Termination: Soler
    Connector Body Style: Straight  Connector Material: Brass
    Contact Plating: Gold  Contact Termination: Solder
    Gender: Jack(male pin)  Impedance: 50 Ohm
    Dielectric: Teflon  Temp.range: -65~ +165℃

Series SMA are very popular thread coupling miniature coaxial connectors.
Which have the excellent performances of high reliability, high mechanical strength,high durability ,and optimum electrical properties, are widely used to connect RF coaxial cables for mobile communication equipments and electronic communication instruments
The interface dimensions and technical characteristics are in accord with the specifications of MIL-C39012.IEC 169-15 and CECC22110


Electrical data

Temperature Range: -65~ +165
Impedance: 50 ohm
Frequency range : Flexible cable DC~12.4GHz / Semi-rigid cable (0~18GHz)
Working Voltage: 335V max
Insulation resistance:≥5000 mΩ
Withstand Voltage.:1000V rms

Contact resistance : Center Contact...≤3mΩ / Outer Contact. .≤2mΩ
Insertion loss : ≥0.15 dB/6GHz
VSWR  Straight.    :1.10+0.002f
                             ≤1.05+0.001f
          Right angle : 1.20+0.003f
                             ≤1.10+0.001f
 Durability(mating)..:≥ 500 (cycles)



APPLECABLE STANDARD
MIL-C-39012;
CECC 22110;
IEC 60169-15



Offer custom:

If you require a different mounting style, we will be happy to consider your requirements to provide a working solution.
