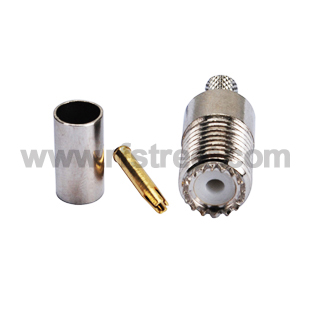

Mini UHF Crimp Jack RF Coax RF Connector for LMR195 ,COAX CABLE RG58
Model: U02-SJL19-41BS00
    QTY 1+10+100+500+ More
    Price each. $2.30$2.07$1.86$1.68 Ask
    Saving% 0% 10%19%27% Ask
Description
Product parameters:
    Product Series: Mini UHF  Product Type: Cable mount
    Cable Type: RG58,RG400,RG142,LMR195  Attachment/Affixment:
    Connector Body Style: Straight  Body Plating: Nickelplated
    Body Termination: Crimp  Connector Material: Brass
    Gender: Jack  Contact Plating: Goldplated
    Contact Termination: Solder  Impedance: 50 Ohm
    Insulator: PTFE  Temp.range: -40~+85 ℃

Mini-UHF is a miniature version of the UHF connectors that were developed for use in the radio industry.



Mini-UHF connectors are designed for use as coaxial interconnection in cell phones, automotive systems, and similar applications where size, weight, and cost factors are critical.

Mini-UHF connectors terminate to RG-58, RG-58A, RG-58B, RG-58C, and Belden 9258 cables. Crimp-type cable plugs and jacks are available as well as panel and printed circuit board receptacles.


Technical characteristics
Temp. range................ -40~+85 ℃
Impedance.................Non-constant
Frequency Range...........DC0-300 MHz
Working Voltage...........750V
Withstand Voltage.........2000V

Contact resistance
Center Contact............≤5mΩ
Outer Contact.............≤5mΩ
Insulation resistance ....≤5000mΩ
Durability (mating)........ 500 (cycles)


MATERIAL & PLATING
Shell .............. ... ....Brass ............. ...... .......Nickel-plated
Contact pin ........ ... Brass.............. .........Gold plated
Socket............. ... ...Beryllium...... ...... .......Gold plated
Insulator .......... ... ...PTFE or PE
Crimping suite..... ... Copper alloy....... .....Nickel-plated


APPLECABLE STANDARD
IEC 60169-12;
GB/T 15888.


Offer custom:
If you require a different mounting style, we will be happy to consider your requirements to provide a working solution.
