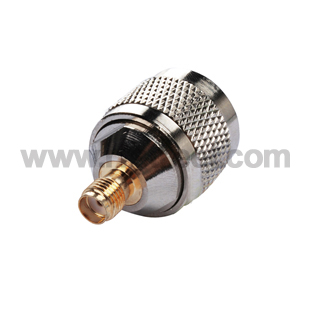

SMA-N adapter SMA Jack to N Plug straight RF Adapter
Model: AD-N01SP-S01SJ-41BS00
Description
Product parameters:
| Product Type: | Coaxial, RF Adapters | Features: | Cable Mount |
| Series: | Between Series SMA-N | Mounting Type: | Free Hanging |
| Convert From(Adapter End): | SMA Jack | Body Plating: | Goldplated |
| Convert To (Adapter End): | N Plug | Contact Plating: | Nickelplated |
| Frenquency Range: | 3GHz | Impedance: | 50 Ohm |
| Connector Material: | Brass | Insulator: | PTFE |
| VSWR at 1GHz: | <1.1 | Insertion loss at 1GHz: | <0.4dB |
| Operating Temperature: | -55 °C to +155°C | : |
