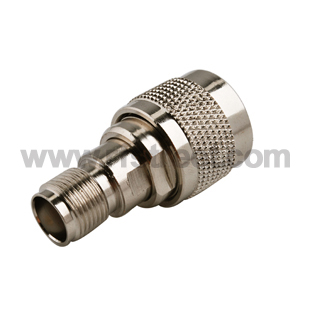

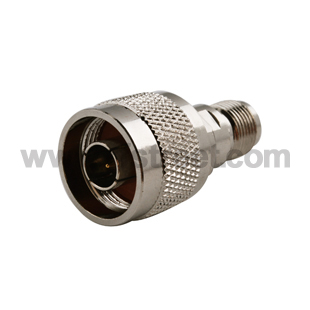

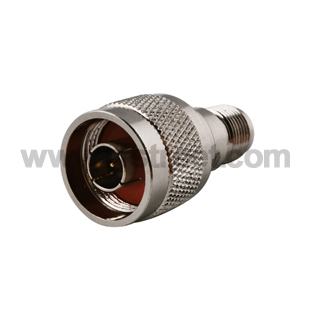

N-TNC adapter N Plug to TNC Jack straight RF Adapter
Model: AD-N01SP-T01SJ-44BS00
Description
Product parameters:
| Product Type: | Coaxial, RF Adapters | Features: | Cable Mount |
| Series: | Between Series N-TNC | Mounting Type: | Free Hanging |
| Convert From(Adapter End): | N Plug | Body Plating: | Nickelplated |
| Convert To (Adapter End): | TNC Jack | Contact Plating: | Goldplated |
| Style: | straight | Connector material: | Brass |
| Impedance: | 50 Ohm | Insulator: | PTFE |
| Frenquency Range: | DC-3GHz | VSWR @ 1GHz: | < 1.3:1 |
| IL @ 1GHz: | < 0.20dB | Temp.range: | -55 °C to +155°C |
