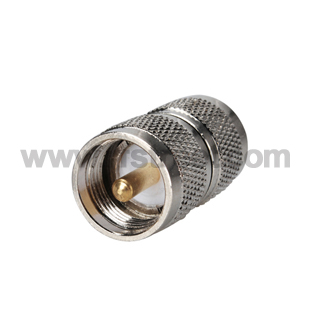

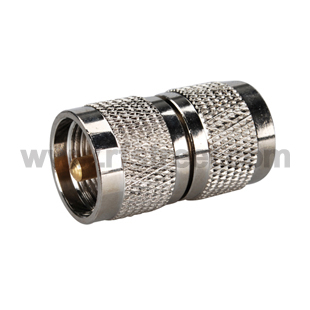

UHF RF Adapter UHF Plug to UHF Plug Straight
Model: AD-U01-PP-44BS00
Description
Product parameters:
| Product Type: | Coaxial, RF Adapters -UHF | Impedance: | 50 Ohm |
| Series: | IN-Series | Insulator: | PTFE |
| Convert From (Adapter End): | UHF Plug | Body Plating: | Nickelplated |
| Convert To (Adapter End): | UHF Plug | Contact Plating: | Goldplated |
| Operating Temperature: | -55 °C to +155°C | Connector material: | Brass |
| Frenquency: | DC-300MHz | VSWR @ 1GHz: | < 1.3:1 |
| IL @ 1GHz: | < 0.50dB | : |
RF adapter product line includes in-series RF adapters design and between series adapter designs as well as T and Cross RF adapters.
Interface types are included in RF adapter ,such as SMA, TNC, N and BNC,which are available in male, female, plug, jack, receptacle gender, in 50 Ohm &75 Ohm impedance and in standard polarity or reverse polarity.
RF adapters are available in quick disconnect (QD), push-on or standard interface , straight, 90 degrees versions,as well as bulkhead ,or 4 hole panel configurations.
RF adapters in standard and high performance with brass body .The stainless steel body will be customized !
