2.4Ghz 7dBi RP-SMA Antenna for Wireless LAN CARD AP
Model: WA1-890-S02SP-070-200
    QTY 1+10+50+100+ More
    Price each. $8.00$7.20$6.50$5.80 Ask
    Saving% 0% 10%19%28% Ask
Description
Product parameters:
    Product Type: Wifi Antenna  Input impedance: 50Ω
    Frequency Range: 2.4Ghz  V.S.W.R.: ≤1.5
    Gain: Polarization: Vertical
    Connector: RP SMA (SMA Plug, socket pin)  Radiation: omnidirectional
    Cable Length(M): 2m  Power: 50W
    Cable Type: RG174  Operating Temperature: -45 to+85℃
    Weight:   Housing: Black
    Mounting: Magnetic  :

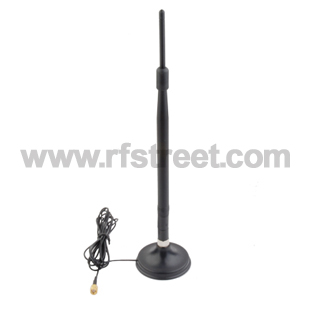

This compact 2.4GHz omnidirectional "rubber-duck" WiFi antenna provides broad coverage and 7dBi gain. It is a coaxial sleeve design with an omni-directional pattern. It is ideally suited for IEEE 802.11b and 802.11g wireless LANs,
This flexible antenna features a tilt-and-swivel reverse-polarity SMA connector, allowing them to be used vertically, at a right angle, or any angle in-between. It is suitable as a replacement RF antenna for many access points and radios that are equipped with reverse-polarity SMA connector including D-LinkR, LinksysR WET11 and others.





Specification:

7dBi gains
Frequency range 2.4Ghz
VSWR <=1.5
Impedance 50 Ohm
Polarization Linear Vertical
Light Weight
Omnidirectional Antenna
Polarization Vertical
length: 30cm
Cable Type, RG174
Cable length,2m
Cable terminal, RP SMA (SMA Plug, socket pin)
Optional Connector, SMA/SMB/MMCX/MCX/FME/BNC/TNC
Magnetic Mount - Put the antenna near the window or on top of a vehicle where it can pick up more signals
