2.4GHz 9Bi Omni WiFi Antenna for RP-SMA Wireless LAN CARD AP
Model: WA1-894-S02SP-090-200
    QTY 1+10+100+500+ More
    Price each. $12.00$10.80$9.70$8.70 Ask
    Saving% 0% 10%19%28% Ask
Description
Product parameters:
    Product Type: Wifi Antenna  Input impedance: 50Ω
    Frequency Range: 2.4Ghz  V.S.W.R.: ≤1.5
    Gain: 9dBi  Polarization: Vertical
    Connector: RP SMA (SMA Plug,Female socket)  Radiation: omnidirectional
    Cable Length(M): 2M  Power: 50W
    Cable Type: RG174  Operating Temperature: -45 to+85℃
    Housing: Black  :

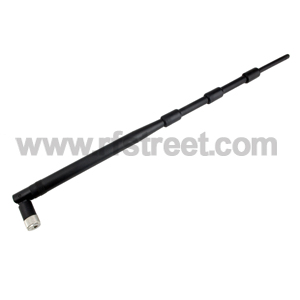

This compact 2.4GHz omnidirectional "rubber-duck" WiFi antenna provides broad coverage and 13dB gain. It is a coaxial sleeve design with an omni-directional pattern. It is ideally suited for IEEE 802.11b and 802.11g wireless LANs,

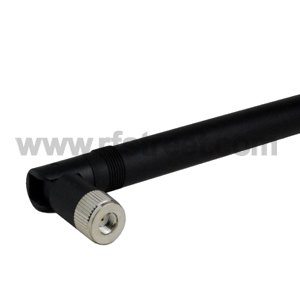

This flexible antenna features a tilt-and-swivel reverse-polarity SMA connector, allowing them to be used vertically, at a right angle, or any angle in-between. It is suitable as a replacement RF antenna for many access points and radios that are equipped with reverse-polarity SMA connector including D-LinkR, LinksysR WET11 and others.





Frequency Range,2.4Ghz
VSWR≤1.5
Gain(dBi):13db
Input Impedance:50 Ω
Polarization Type Vertical
Antenna Length: 40cm
Antenna terminal, RP SMA (SMA Plug,Female socket)





Cable Type, RG174
Cable length,2m
Cable terminal, RP-SMA (SMA Plug, socket Pin ) Optional Connector, SMA/SMB/MMCX/MCX/FME/BNC/TNC
