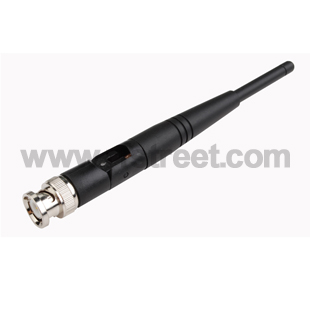

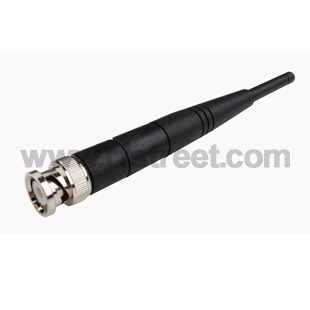

2.4GHz 5dBi Omni wifi Antenna for wireless router BNC male
Model: WA2-1195-B01SP4-050
Description
Product parameters:
| Product Type: | Wifi Antenna | Input impedance: | 50Ω |
| Frequency Range: | 2.4GHz | V.S.W.R.: | ≤2.0 |
| Gain: | 5 | Polarization: | Vertical |
| Connector: | BNC plug | Radiation: | omnidirectional |
| Weight: | 23g | Power: | 50W |
| Mounting: | Magnetic | Operating Temperature: | -45 to+85℃ |
This compact 2.4GHz omnidirectional "rubber-duck" WiFi antenna provides broad coverage and 5dBi gain. It is a coaxial sleeve design with an omni-directional pattern. It is ideally suited for IEEE 802.11b and 802.11g wireless LANs
This flexible antenna features a flexible BNC connector.It is suitable as a replacement RF antenna for many access points and radios that are equipped with BNC connectors including D-LinkR, LinksysR WET11 and others.
for wireless router and WLAN PCI card
Diameter: 14mm
High:145mm
Weight:23g
802.11b, 802.11g

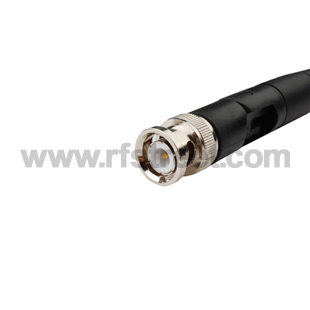

flexible BNC plug Connector
Omni WiFi antenna
