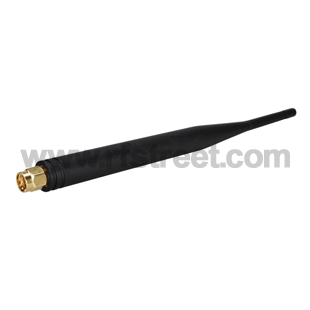

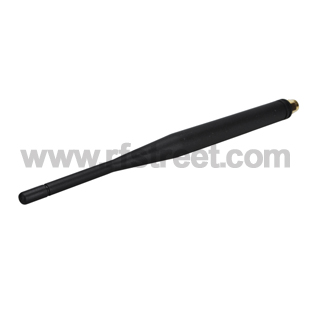

Rubber Antenna 868Mhz,3dbi SMA Plug straight for Ham radio
Model: EA2-2132-S01SP1-030
Description
Product parameters:
| Product Type: | GSM Antenna | Input impedance: | 50Ω |
| Frequency Range: | 868MHz | V.S.W.R: | ≤1.5 |
| Gain: | 3 dbi | Polarization: | Vertical |
| Connector: | SMA male | Radiation: | omnidirectional |
| Antenna Length: | Power: | 60W | |
| Bandwidth: | 30MHz | Operating Temperature: | -20 to +55℃ |
| Weight(kg): | 0.016kg | Storage Temperature: | -20 to +55℃ |
| Mounting: | Housing: | Black |
Frequency Range（MHz）: 868
Bandwidth（MHz） 30
VSWR ≤1.5
Gain（dBi） 3
Max Input power（W） 60
Input Impedance（Ω） 50
Polarization Type Vertical

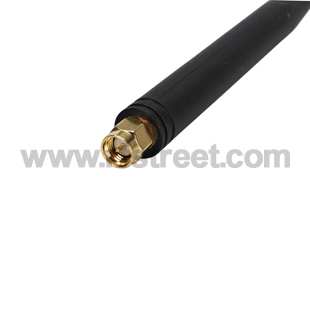

Antenna connector :SMA Plug
Weight: 0.015KG
