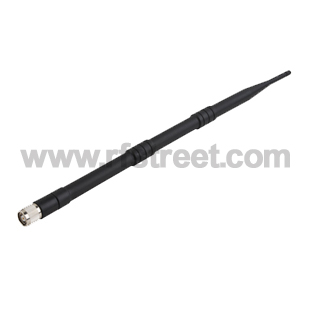

2.4GHz 9dBi Omni WiFi Folding Antenna RP TNC For WRT54G WAP54G
Model: WA2-1320-T02SP4-090
Description
Product parameters:
| Product Type: | Wifi Antenna | Input impedance: | 50Ω |
| Frequency Range: | 2.4GHz | V.S.W.R.: | ≤1.8 : 1 |
| Gain: | 9 | Polarization: | Vertical |
| Connector: | RP-TNC Female | Radiation: | omnidirectional |
| Weight: | Power: | 50W | |
| Mounting: | Magnetic | Operating Temperature: | -45 to+85℃ |
100% Brand New Generic High Quality 2.4GHz 9dB WiFi Booster RP-TNC Female Folding Antenna
Install by simply unscrewing your current antenna, and attach this High Gain antenna in its place.
There are no drivers to install, and no modifications to your setup are necessary.
Please check if the connector does fit your router before bid!
Specification:
9dBi gains
Dimension: 35cm tall when fully extended; 32cm when bottom joint is turned to right-angle.(fully extended means that the joint is straight rather than right-angle)
Diameter: 1.5cm

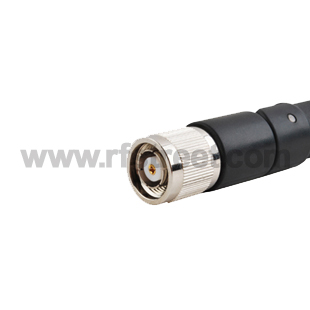

RP-TNC Female Folding connector
802.11b and 802.11g: Interoperable with WiFi (WECA) certified equipment
Polarization Linear Vertical
Light Weight
Omnidirectional Antenna
Polarization Vertical
VSWR ≤1.8 : 1
