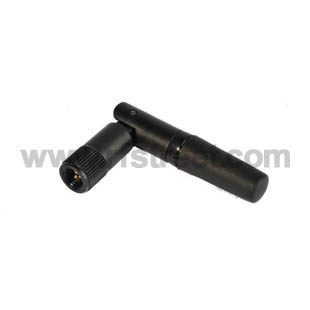

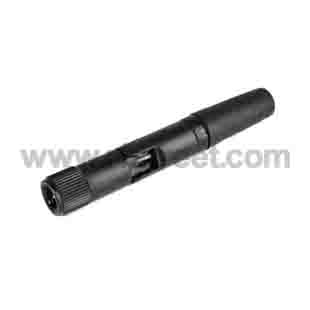

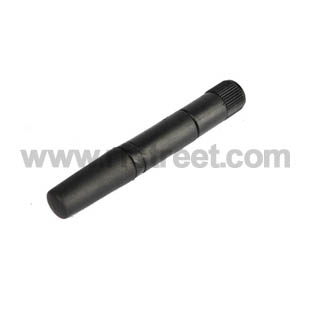

2.4GHz 2.15dBi WIFI Inner Antenna SMA for wireless router
Model: WA2-1634-S01SP-021
Description
Product parameters:
| Product Type: | Wifi Antenna | Input impedance: | 50Ω |
| Frequency Range: | 2.4GHz | V.S.W.R.: | ≤1.5 |
| Gain: | 2.15 | Polarization: | Vertical |
| Connector: | SMA male | Radiation: | omnidirectional |
| Weight: | 0.008kg | Power: | 50W |
| Mounting: | Magnetic | Operating Temperature: | -45 to+85℃ |
This compact 2.4GHz omnidirectional "rubber-duck" WiFi antenna provides broad coverage and 3dBi gain. It is a coaxial sleeve design with an omni-directional pattern. It is ideally suited for IEEE 802.11b and 802.11g wireless LANs

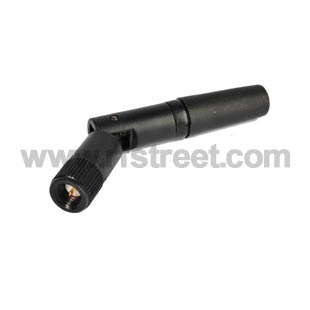

This flexible antenna features a tilt-and-swivel SMA connector, allowing them to be used vertically, at a right angle, or any angle in-between. It is suitable as a replacement RF antenna for many access points and radios that are equipped with SMA connectors including D-LinkR, LinksysR WET11 and others.
Frequency（MHz ）：2.4Ghz
VSWR ≤1.5
Gain（dBi）： 2.15
Return Loss（dBi）：17
power（W）：50
Input Impedance（Ω）：50
Antenna Length（mm）：67
Connector：SMA male default /FME（Straight/Right Angle ）etc.
Weight:0.008kg
