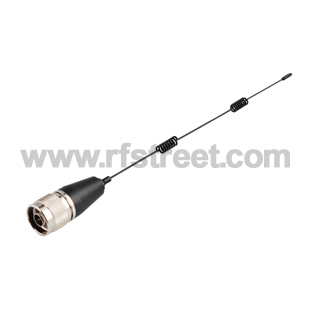

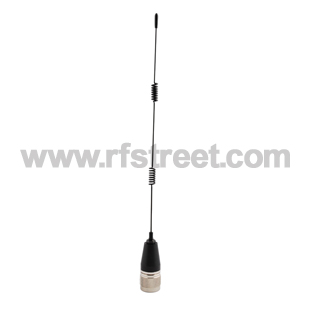

2.4GHz 7dBi WIFI Antenna N male for wireless router/Car antenna
Model: WA2-1920-N01SP4-070
Description
Product parameters:
| Product Type: | Wifi Antenna | Input impedance: | 50Ω |
| Frequency Range: | 2.4GHz | V.S.W.R.: | ≤1.5 |
| Gain: | 7 | Polarization: | Vertical |
| Connector: | N plug | Radiation: | omnidirectional |
| Weight: | 70g | Power: | 50W |
| Housing: | Black | Operating Temperature: | -45 to+85℃ |
This compact 2.4GHz omnidirectional WiFi antenna provides broad coverage and 7dBi gain. It is a coaxial sleeve design with an omni-directional pattern. It is ideally suited for IEEE 802.11b and 802.11g wireless LANs,
It is suitable as a replacement RF antenna for many access points and radios that are equipped with SMA connectors including D-LinkR, LinksysR WET11 and others.
for wireless router and WLAN PCI card
802.11b, 802.11g

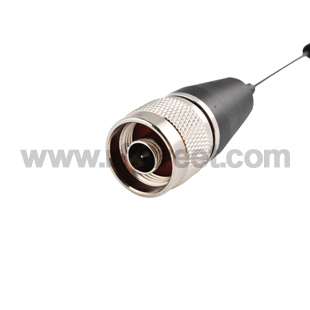

N plug Connector
Flexible WiFi antenna
