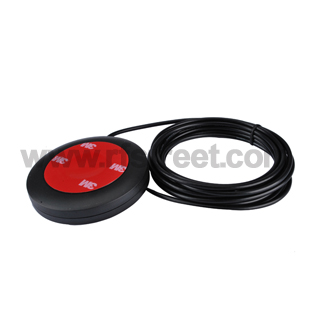

DAB antenna aerial 2320-2345 Mhz with Fakra
Model: DB1-2383-F03ASJ-000-300
Description
Product parameters:
| Product Type: | DAB active antenna | Input Impedance: | 50Ω |
| Frequency Range: | 2320-2345 Mhz | V.S.W.R: | ≤2.0 |
| Gain: | 0 dbi | Polarization: | Linear |
| Connector: | Fakra A female | Radiation: | omnidirectional |
| Cable Length: | RG174 3m | Power: | 50W |
| Bandwidth: | Operating Temperature: | -45'c to+85'c | |
| weight: | 0.071kg | Storage Temperature: | -45'c to+85'c |
| Mounting: | Adhesive | Housing: | Black |
Frequency Range(MHz) 2320-2345 Mhz
Gain: 0 dbi
Max Input power(W): 50
Input Impedance(Ω): 50
Polarization Type:Linear
Radiation: omnidirectional
Cable Length(mm): 3M
Cable Type RG 174 default
Connector Type : Fakra"A" female connector (Default) SSMB/CRC9/TS9/MS147/MCX/MMCX/FME/BNC/TNC/SMB/MC-Card..and so on.,please give us notes if the connector is chosen !
Mounting: Adhesive
Housing: Black
Weight:71g
Storage Temperature: -45'c to +85'c
Operating Temperature: -45'c to+85'c
