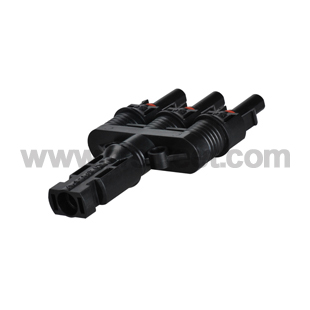

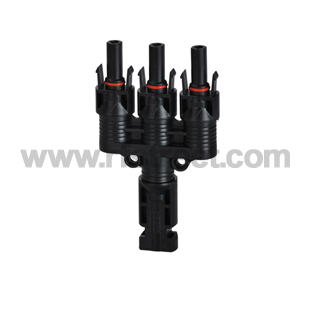

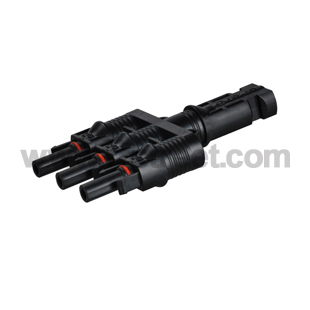

MC4 BRANCH ADAPTORS-T BRANCH CONNECTORS 30A TUV SOLAR PANEL PV DIY-JKKK
Model: MC4-2292-JKKK
Description
Product parameters:
| Product Type: | Solar Panel Connector | Waterproof Grade: | IP67 |
Rated Voltage : TUV 1000V DC/ UL600V DC
Rated current : 20A-30A
Suitable cable cross section : 14AWG-10AWG
Pin dimension : Ø4.0mm
Proof voltage : TUV 6000V AC(1 MIN)/ UL 2200V DC (1MIN)
Polution degree : 2
Protection class : Class 2
Contact Material : Copper, Tin plated
Contact Resistance : ≤ 53
Degree of protection : IP 68
Withdrawal Force : ≥ 50N
Insertion force : ≤ 50N
Temprature range : -40˚ C~+85˚ C
Flame class : UL94V-0
Package included:
1pcs MC4 Branch Adapters Male to three Female
