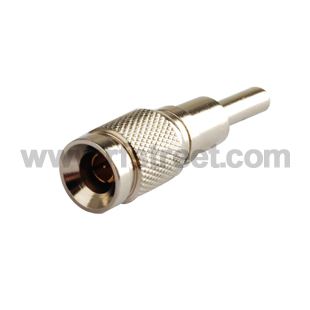

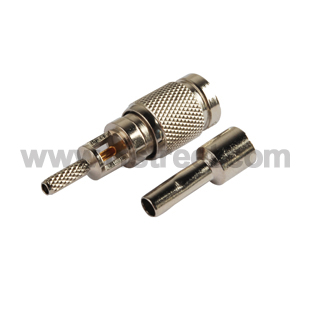

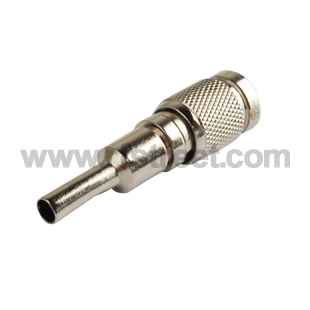

75 Ohm 1.0 /2.3 Plug Straight Crimp Attachment for RG178 RF Connector
Model: M08-SP178-41BS00
Description
Product parameters:
| Product Series: | 1.0/2.3 | Product Type: | Cable mount |
| Application: | Crimp | Body Plating: | Nickelplated |
| Cable Type: | RG178 | Body Termination: | Soler |
| Connector Body Style: | straight | Connector Material: | Nickelplated |
| Gender: | male | Contact Termination: | Brass |
| Contact Plating: | Gold | Impedance:: | 75 Ohm |
| Dielectric: | Teflon | Temp.range: | -65～ +165℃ |
Frequency Range:0-10 GHz
Working Voltage:250 VRMS max. at sea level
Dielectric Withstanding Voltage:750 VRMS min. at sea level
VSWR: 1.3 max.
Center Contact: 10 milliohm Max
Outer Contact: 3 milliohm Max
