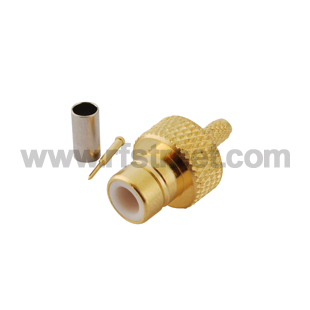

RF Connector SMZ Crimp plug Straight for cable BT 2002
Model: S19-SP316-11BS00
Description
Product parameters:
| Product Series: | SMZ | Product Type: | Cable mount |
| Application: | Crimp | Body Plating: | Goldplated |
| Cable Type: | RG174,RG316,LMR100 | Body Termination: | Soler |
| Connector Body Style: | straight | Connector Material: | Goldplated |
| Gender: | male | Contact Termination: | Brass |
| Contact Plating: | Gold | Impedance:: | 50 Ohm |
| Dielectric: | Teflon | Temp.range: | -65～ +165℃ |
Features:
Snap-on/quick disconnect mating
Low cost solution
Available in 50Ω and mini 75Ω
Applications:
Automotive
PC/LAN
Test and Measurement
Telecom
Insulator Resistance:1000 megaohms min.
Frequency Range:0-4 GHz
