Characteristic:

（i） Dieletric Antenna
Center Frequency 1575.42MHz±3 MHz
V.S.W.R 1.5:1
Band Width ±5 MHz
Impendence 50 ohm
Peak Gain ＞3dBic Based on 7×7cm ground plane
Gain Coverage ＞-4dBic at –90°＜0＜+90°(over 75% Volume)
Polarization RHCP

（ii） LNA/Filter
LNA Gain (Without cable) 28+/-3dB
Noise Figure 1.5dB Typ.
Filter Out Band Attenuation (f° =1575.42MHz)
7dB Ｍin f0+/-20MHZ ;
20dB Ｍin f0+/-50MHZ;
30dB Ｍin f0+/-100MHZ
V.S.W.R ＜2.0
DC Voltage 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other
DC Current 5mA /11mA/15mA Max

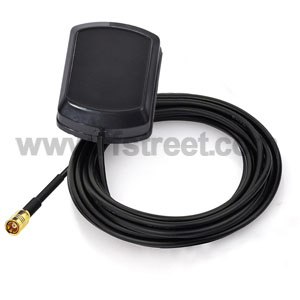

（iii）Mechanical
Weight ＜100gram
Size :48x39x16mm
Cable :RG174 3 meter / Contact us for other length
Connector :SMB Plug default/SMA/SMB/SMC/BNC/FME/TNC/MCX /MMCX /Fakra/WICLIC in straight or right angle please give us some notes if the antenna connector is chosen.Tks!
Mounting Magnetic base
Housing Black


（iv）Environmental
Working Temp -40℃~+85℃
Storage Temp. -45℃~+100℃
Vibration Sine sweep 1g(0-p)10~50~10Hz each axis
Relative Humidity 95% non-condensing
Weatherproof 100% Waterproof

(V) FEATURES:

Compact Construction/ Low Profile/
Fully Waterproof
Magnet and Screw Mount Base
Excellent Temperature Stability
Low Noise Figure
High Sensitivity

(VI) APPLICATIONS:

Automobile GPS
Bluetooth Receiver
Vehicles /Car Tracking Navigation System
AVL / Fleet Management Systems
External Antenna for Handheld GPS
External Antenna for PDA Navigato

GPS antenna with SMB Plug connector compatibility:

Audi: GPS Navigation System A2,A3,A4,A6,A8, RNS E, NaviPlus,
Blaupunkt: E1, E2, Freestyle, Rome, Amsterdam ,TravelPilot AP 10, TravelPilot DX-N, TravelPilot DX-R4, TravelPilot DX-R5, TravelPilot DX-R52, TravelPilot DX-R70, TravelPilot DX-V, TravelPilot RCM 12, TravelPilot RGS 06, TravelPilot RNS 1, TravelPilot RNS 150, TravelPilot RNS 2, TravelPilot RNS 3, TravelPilot RCM 12, TravelPilot DX-R52, TravelPilot DX-R70, TravelPilot RCM 127, TravelPilot RNS 149,
Falcom: AVL & Tracking STEPP,
Magellan: 750M, 750m Plus, 750NAV, 750Nav Plus, ColorTRAK, GPS Tracker, Map 410, Nav 6000,
Trimble: ACE I, ACE II, ACE III, CM3, External Patch Antenna, GeoExplorer III, Hand Held GeoXH, Hand Held GeoXM, Hand Held GeoXT, Lassen? SK II board, Placer GPS 450, Placer GPS 455, SK II, SK-8, Svee Six,
u-blox: LEA-LA GPS Receiver Module, TIM-LA GPS Module, TIM-LC GPS Module, TIM-LF GPS Module, TIM-LH SuperSense GPS Module, TIM-LL GPS Module, TIM-LP GPS Module, TIM-LR GPS Module,
VDO Dayton: Navigation Radio MS 4150 RS MP3, Navigation Radio MS 4200 RS, Navigation Radio MS 4400, Navigation System, Navigation System MS 3200, Navigation System MS 5200 RD, Navigation System MS 5200 SD, Navigation System MS 5200 XL, Navigation System MS 5200 XS, Navigation System MS 5600, Navigation System MS 5600 RD, Navigation System MS 5600 XL, Navigation System MS 5600 XS, Navigation System MS 5700 RD, Navigation System MS 5700 SD, Navigation System MS 5700 XL, Navigation System MS 5700 XS, Navigation System PC 5600, Navigation System PC 5700,
VW: VW MCD GPS Navigation System, VW MFD GPS, VW MFD2 GPS, VW Navi Plus, VW RNS2 GPS,RNS 1-2-3-4 ,S2 , NaviPlus

BMW: MK 1, 2, 3, 4, Professional, Business ( BMW E38 , E39 , E46 , X5 , X3 , Z4 )
Ford : MFD, MFD2, MCD, RNS 1-2-3-4 ,S2 , NaviPlus
Medion: Navi MD 41400
Philips :CARIN 520, 522
