Product parameters:
| Product Type: | RF Coaxial cable | Impedance: | 50ohm |

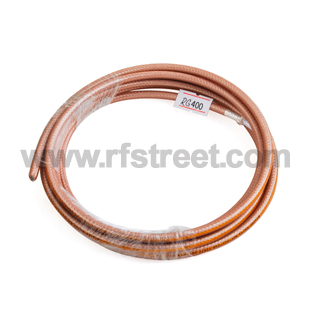

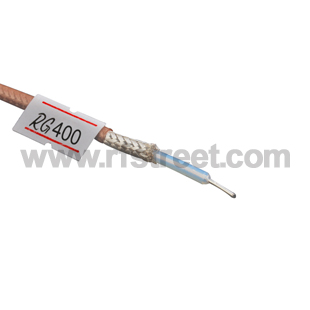

RG Series MIL-C-17 RF coaxial cable RG400 9.45USD/meter
Applications:
1. RG series MIL-C-17 cable originally created to support WWII military application. These cable quickly became the products of choice for commercial wireless applications once they hit the surplus market, such as microwave systems, military aerospace, military ground-based communication systems---
Key Features:
1. Meet all MIL-C-17 requirements
2. Good shielding effectiveness
3. Low passive intermod (PIM)
4. Readily available in distribution
PHYSICAL PROPERTIES
|
|
Material |
Diameter(mm) |
|
1. Inner conductor |
Sliver plated copper |
19 X 0.203 |
|
2. Insulation |
PTFE |
2.95 |
|
3. Outer conductor |
Sliver plated |
3.95 |
|
4. Jacket |
FEP |
4.90 |
ELECTRICAL PROPERTIES
| Nom. Capacitance Conductor to Shield(pF/m) |
105 |
|
Nom. Characteristic Impedance(ohm) |
50 |
|
Nom. Velocity of Propagation(ï¼…) |
70 |
|
Min. Bend Radius(Install)(mm) |
25 |
|
Voltage Rating(VMS) |
1900 |
|
Max. Operating Frequency(MHz) |
12400 |
|
Operating Temperature Rating(°C) |
-55～+200 |
Nom. Attenuation
| Frequency(MHz) |
Nom. Attenuation(≯dB/m) |
|
100 |
0.144 |
|
400 |
0.295 |
|
1000 |
0.482 |
|
3000 |
0.883 |
|
5000 |
1.184 |
|
11000 |
1.899 |
