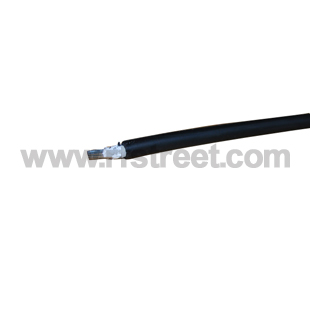

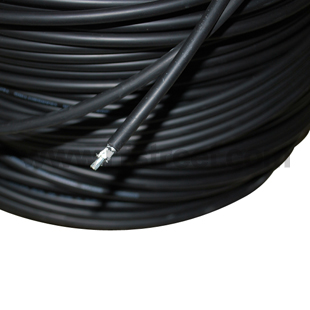

Solar Panel Cable for MC4 Solar Panel connectors and MC3
Model: CA-040
Description
Product parameters:
| Cable Type: | PV1-F 1*4.00mm2 | Impedance: | 50Ω |
| Rated Current: | 55A | Rated Voltage: | AC0.6/1kV |
| Cable Approx.Odmm: | 6.3mm | Operating Temperature: | -40~+90℃ |
Solar Panel Cable for MC4 Solar Panel connectors and MC3
4.9USD/Meter
250 meter/Roll
Solar Panel Cable for MC4 Solar Panel connectors and MC3
Tempeature range of application -40 degree up to 90 degree ,max.tempeature at conductor 120 degree
The permiited short-circult-tempeature refer to a period of 5S is 200 degree.
High resisitance against UV ,ozone and hydrolysis.
Very high machanical robustness and resistence against water ,oil and chemicals.
It is approvalled by TUV.
