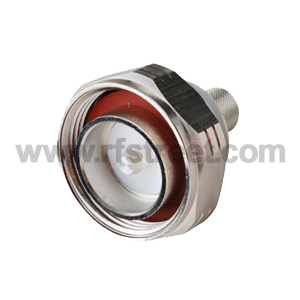

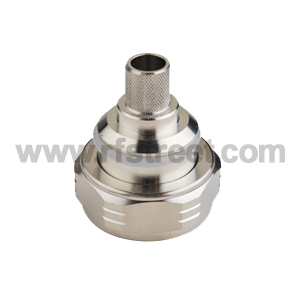

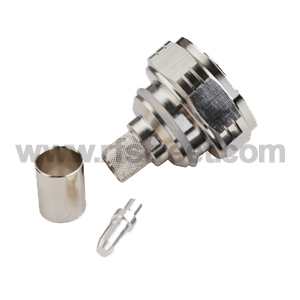

7/16 series RF connectors are 50 ohm constant impedance connectors with repeatable electrical performance from DC to 7.5 GHz. They are medium-size rugged connectors and feature good power-handling capability. 7/16 type connectors are designed to minimize signal distortion from intermodulation. Because of this, standard plating is silver. Optional nickel plating should only be specified when low intermodulation is not a concern in your system design.

Technical characteristics
Impedance ........... ..........50ohm
Frequency range........... ...DC to 6GHz
VSWR........... .......... ...... ....≤1.3
Insertion loss........... ...........≤0.35dB,DC-6GHz
Insulation resistance........... .≥1000mΩ
Test voltage........... ...........4000 V rms
Working voltage........... .........2700 v rms
Contact resistance:
1).Centre contact........... .......... 0.4 mΩ
2).Outer conductor........... .........1.5 mΩ

Environmental Data:
Temperature rating: -40 to 85 ℃

Mechanical data:
Mating cycles:≥500

MATERIAL & PLATING
Shell ................ ...... brass ...........Nickel-plated
Inner conductor .......brass ........... Silver-plated
Insulator .... .... .... ....PTFE
Crimping suite .......... copper alloy .......... nicked or gold-plated

APPLECABLE STANDARD
DIN47223;
IEC169-4;
CECC22190.

Datasheets:

Offer custom:
If you require a different mounting style, we will be happy to consider your requirements to provide a working solution.
