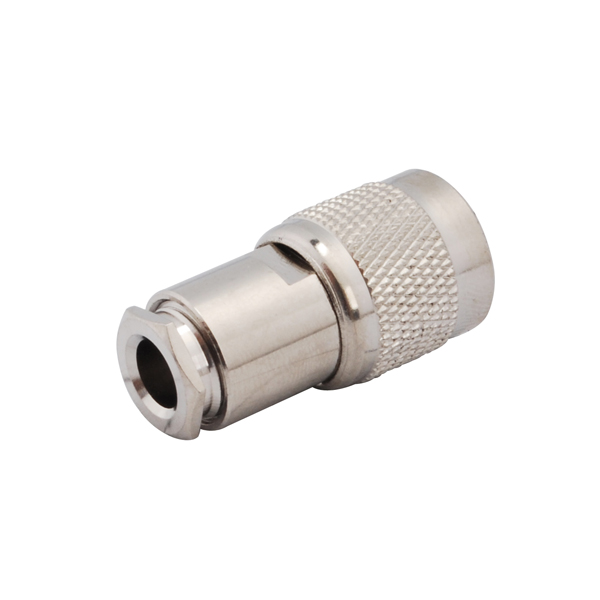

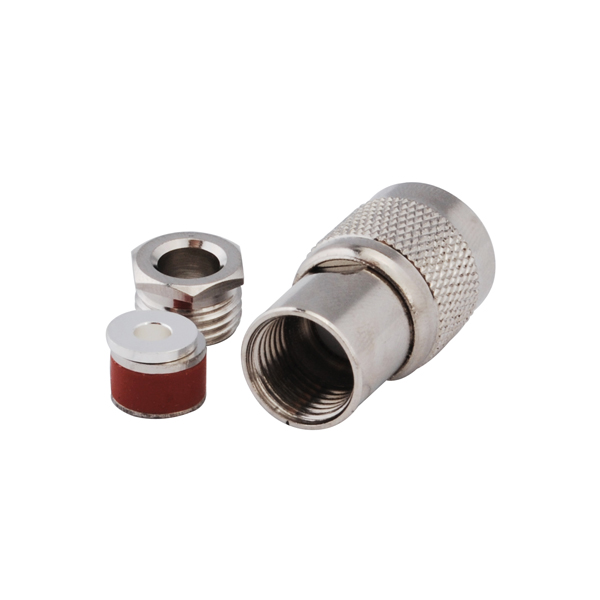

RF Connector TNC Clamp Plug for LMR195
Model: T01-SPL19-41BS01
Description
Product parameters:
| Product Series: | TNC | Product Type: | Cable mount |
| Application: | Clamp | Body Plating: | Nickelplated |
| Cable Type: | RG58, RG142,LMR195 | Body Termination: | Soler |
| Connector Body Style: | straight | Connector Material: | Brass |
| Impedance: | 50 Ohm | Contact Plating: | Goldplated |
| Temp.range: | -55 °C to +155°C | Insulator: | Teflon |
| Frenquency Range: | DC-3GHz | VSWR @ 1GHz: | < 1.3:1 |
| IL @ 1GHz: | < 0.3dB | : |
