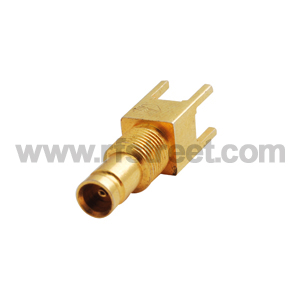

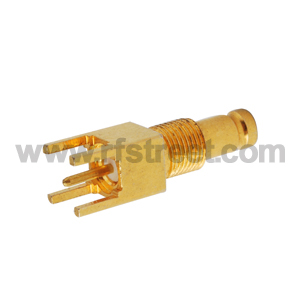

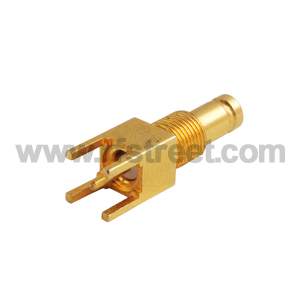

75 Ohm RF Connector 1.0/2.3(CC4/SSA) thru hole Jack Bulkhead Straight vertica
Model: M08-SJPT4-11BS00
Description
Product parameters:
| Product Series: | 1.0/2.3 | Product Type: | Thru Hole PCB Mount |
| Application: | Crimp | Body Plating: | Goldplated |
| Cable Type: | Body Termination: | Goldplated | |
| Connector Body Style: | Straight | Connector Material: | Brass |
| Gender: | Jack | Contact Termination: | Solder |
| Contact Plating: | Nickel | Impedance:: | 75 Ohm |
| Dielectric: | Teflon | Temp.range: | -65～ +165℃ |
Product Series: 1.0/2.3
Product Type: Thru Hole PCB Mount
Attachment/Affixment: Bulkhead
Body Plating: Goldplated
Connector Body Style: Straight
Connector Material: Brass
Contact Plating: Goldplated
Gender: Jack
Impedance: 75 Ohm
Weight 0.005kg
Offer custom:
If you require a different mounting style, we will be happy to consider your requirements to provide a working solution. Please contact us.
