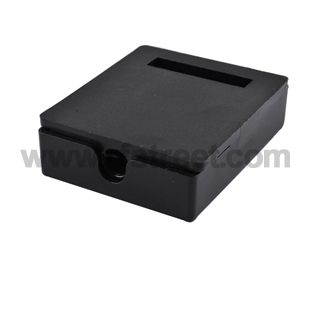

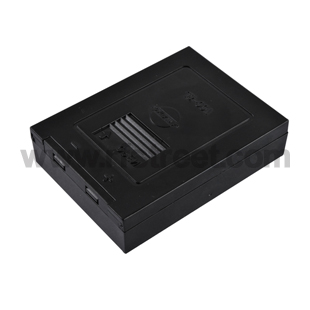

The Solar Junction Box, designed for robotic-assembly of silicon photovoltaic systems, reduces assembly time and production costs for PV-panel manufacturers. Rugged and durable, IP67-sealed, DC connectors feature simple snap-lock mating and an internal locking mechanism for superior safety. They are designed for direct connection to solar junction boxes, field installations and PV grid wiring. In addition, DC double-insulated cable assemblies, with proven long life cycle and optimum weather resistance, meet the demands of harsh and outdoor solar wiring applications.

Main technical parameters
Scope Of Power  10-30W
Rated Current  5A
Rated Voltage  DC 1000V
Protection Degree  IP65
Power Capacity  15-30Watt
Touch Protection Class  Ⅱ
Temperature Range  -40°C ~ 85°C

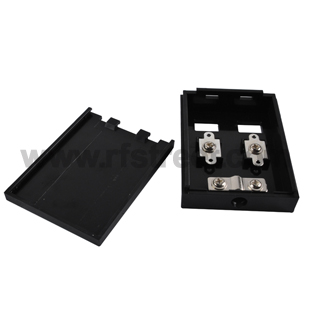

Number of terminals  2 rails
Overall dimensions  67*50*16mm
N.W(KG)  0.030KG

Product Features:
1.With the capacity of anti-aging and UV resistant, provide longer life span under outdoor bad condition.
2.Adopted reliable connection solution ,simple,quick and safe effective field assembly.
3. Excellent sealing performance, waterproof and dustproof rating up to IP65.
4 A small box Junction box to provide users with a safe,practical,and reliable connectivity.
5 Used Widely In street lamps and other low-power PV modules.
