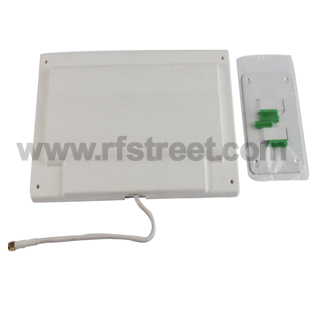

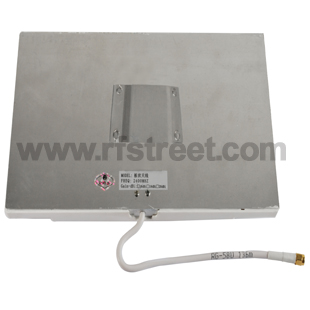

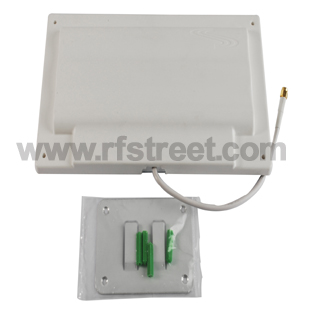

2.4GHz 16dBi WiFi Directional Panel Antenna with RP-SMA for IEEE
Model: WAP-1554-S02SP-160-22
Description
Product parameters:
| Product Type: | 3G Antenna | Input I mpedance: | 50Ω |
| Frequency Range: | 2400-2483MHZ | V.S.W.R.: | ≤1.5 |
| Gain: | 16dBi | Polarization: | Vertical |
| Connector: | RP-SMA Male | Radiation: | omnidirectional |
| Cable Length(M): | RG58 cable | Power: | 50W |
| Cable Type: | 220mm | Operating Temperature: | -40C to +60C |
| Mounting: | Magnetic | Housing: | white |
This compact 2.4GHz omnidirectional "rubber-duck" WiFi antenna provides broad coverage and 5dBi gain. It is a coaxial sleeve design with an omni-directional pattern.
This flexible antenna features a tilt-and-swivel IPX/u.fl connector. It is suitable as a replacement RF antenna for many access points and radios that are equipped with IPX/u.fl connectors.
Frequency Range-MHZ: 2400-2483MHZ
Bandwidth-MHZ:83MHZ
Gain-dBi:16
Horizontal Beamwidt-°:30
Vertical Beamwidth-°:24
F/Bration-db>=30
V.S.W.R<=1.5
Input Impedance-Ω:50
Polarization Type:Vertical or Horizontal
Max.Power-W:100
Connector:RP-SMA Male
Antennas Dimension-mm:280mmX155mmX25mm
Weight:367g
Cable:RG58 cable
Length of the cable:220mm
