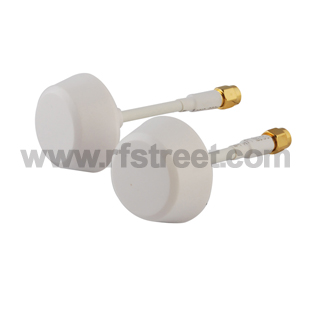

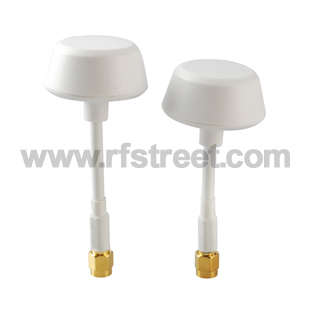

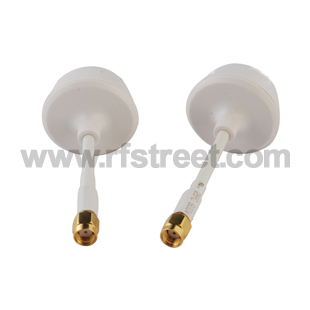

2.4GHz 3dB/5.8Ghz Double frequency Directional Receive and Transmit for aerial equipment
Model: WA2-2628-S02SP-030
Description
Product parameters:
| Product Type: | 3G Antenna | Input Impedance: | 50Ω |
| Frequency Range: | 2.4GHz 3DB /5.8GHz 3DB | V.S.W.R.: | 1.5:1max |
| Gain: | 2400-2483Mhz/5150-5850Mhz | Polarization: | Vertical |
| Connector: | RP-SMA male straight | Radiation: | omnidirectional |
| Cable Length(M): | Power: | 50W | |
| Cable Type: | Operating Temperature: | -40C to +60C | |
| Mounting: | Magnetic | Housing: | white |
Product specifications
Optimal Gain:2.4GHz 3DB /5.8GHz 3DB
Frequency Range :2400-2483Mhz/5150-5850Mhz
Voitage Standing Wave Radio:1.5:1max
Polarization:Lvnear Vertical
Impedance: 50ohms
Directon: directional
Connector: RP-SMA male straight(default)
F/Bratio-dB:>=25
Horizontal Beamwidth:20+/-5
Verticall Beamwidth:20+/-5
Application
used in aerial equipment and some big remote control toys
Antenna with affixed TX is used for Transmit
Antenna with affixed RX is used for Receive
