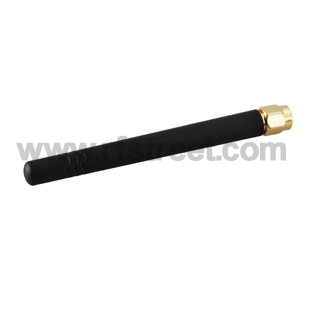

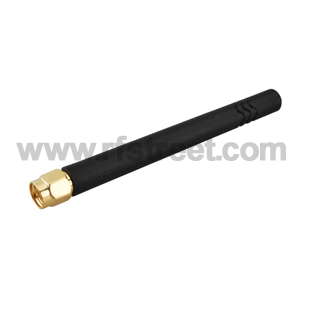

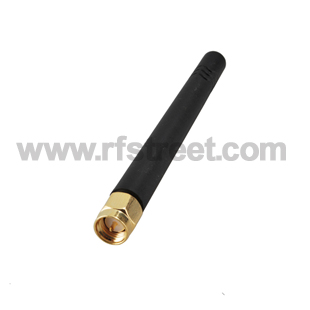

Antenna 978Mhz,3dbi SMA Plug straight for Ham radio
Model: EA2-2658-S01SP-030
Description
Product parameters:
| Product Type: | GSM Antenna | Impedance: | 50Ω |
| Frequency Range: | 978MHz | V.S.W.R: | ≤1.5 |
| Gain: | 3dBi | Polarization: | Vertical |
| Connector: | SMA Plug | Radiation: | omnidirectional |
| Antenna Length: | ＜10CM | Power: | 60W |
| Bandwidth: | 30MHz | Operating Temperature: | -40 to +85℃ |
| Weight(kg): | 0.015KG | Storage Temperature: | -40 to +85℃ |
Frequency Range（MHz）: 978
Bandwidth（MHz） :30
VSWR :≤1.5
Gain（dBi） :3
Max Input power（W） :60
Input Impedance（Ω） :50
Polarization Type :Vertical
Antenna connector :SMA Plug
Length :Length :＜10CM
Weight: 0.015KG
The Material of antenna cover :polythene
