2.4GHz 5.5dBi Omni WIFI Antenna RP-TNC plug for wireless router
Model: WA2-2651-T02SP-055
Description
Product parameters:
| Product Type: | WIFI Antenna | Impedance: | 50Ω |
| Frequency Range: | 2.4GHz | V.S.W.R: | ≤1.5 |
| Gain: | 5.5dBi | Polarization: | Vertical |
| Connector: | RP-TNC plug | Radiation: | omnidirectional |
| Length: | 258mm | Diameter: | 14.5mm |

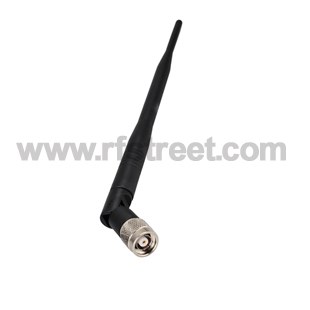

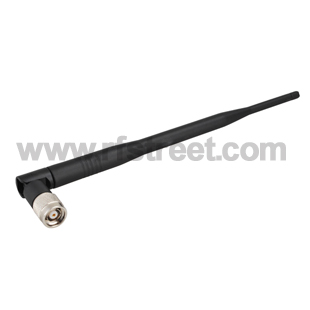

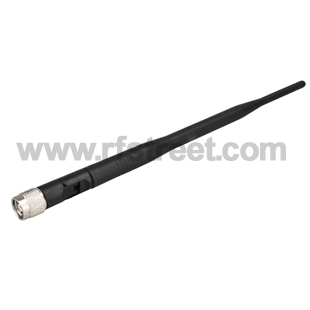

This compact 2.4GHz omnidirectional "rubber-duck" WiFi antenna provides broad coverage and 5.5dBi gain. It is a coaxial sleeve design with an omni-directional pattern. It is ideally suited for IEEE 802.11b and 802.11g wireless LANs.
This flexible antenna features a tilt-and-swivel RP-TNC male connector, allowing them to be used vertically, at a right angle, or any angle in-between. It is suitable as a replacement RF antenna for many access points and radios that are equipped with RP-TNC connectors including D-LinkR, LinksysR WET11 and others.
for wireless router and WLAN PCI card
Diameter: 14.5mm
Length: 258mm
802.11b, 802.11g
RP-TNC plug Connector
Flexible WiFi antenna
Tilt and swivel design
