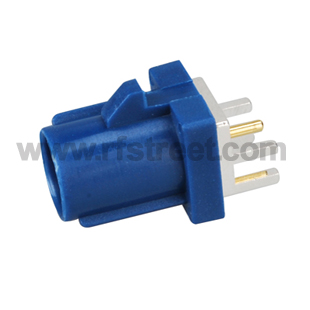

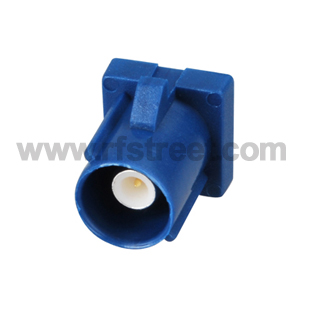

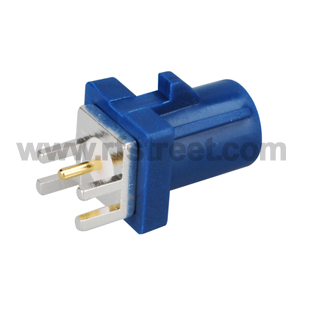

Fakra Plug End Launch PCB mount straight Blue for GPS telematics or navigation
Model: F03-SPEDM-C
Description
Product parameters:
| Product Type: | Fakra Connector | Impedance: | 50Ω |
| Application: | wireless and GPS applications | Frequency Range: | DC-6GHz(optimized DC-4GHz) |
| Apply to: | GPS telematics or navigation | V.S.W.R: | <1.5 |
| Dielectric Withstanding Voltage: | >800 VRMS(Interface only) | Insulation Resistance: | 1000 MΩ min |
| Temperature Range: | -40 / +100℃ | Contact Resistance: | <40 m |
