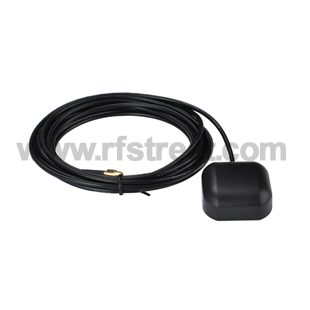

GPS active Antenna with SMA male connector RG174
Model: GA34-300-S01SP
    QTY 1+10+100+500+ More
    Price each. $8.92$8.47$7.58$7.04 Ask
    Saving% 0% 5%15%21% Ask
Qty:
Description
Product parameters:
    Product Type: GPS Antenna  V.S.W.R: <1.5
    Center Frequency: 1575.42±5MHz  Band Width: 50 MHz Min. at -10dB
    Cable: RG174  Impendence: 50 ohm
    Cable length: 3m  Mounting: Magnetic base
    Connector: SMA Plug default  Housing: Black

i)Dielectric Antenna
Frequency: 1575.42MHZ
Center Frequency:1575.42±5MHz
V.S.W.R: <1.5
Band Width: 50 MHz Min. at -10dB
Impendence: 50 ohm
Peak Gain : 5dBic Min/1574MHz. 4dBic Min/1602~1616MHz
Gain Coverage:≥- 4dBic at -90°~90°(over75% volume)
Power Handling : 1 watt
Polarization : RHCP




(ii)LNA
LNA Gain(Without cable): 30dB Typical
Noise Figure: 1.5dB
V.S.W.R <1.5
DC Voltage: 3.0V/3.3V/5.0V/3.0V to 5.0V/other
DC Current: 10mA Max




(iii)Mechanical
Weight:63g
Size: 39 ×36.5×15mm
Cable Length: RG174 3meters or other
Connector :SMA Plug default SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX or other
Mounting: Magnetic base
Housing: Black



(iv)Environmental
Working Temp: -40℃~+85℃
Storage Temp: -45℃~+100℃
Vibration: Sine sweep 1g(0-p)10~50~10Hz each axis
Humidity: Humidity95%~100%RH
Weatherproof 100%Waterproof
