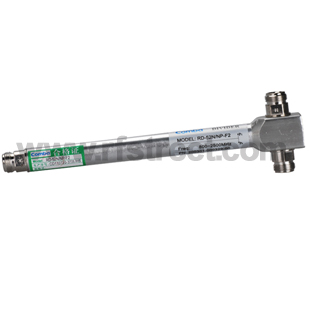

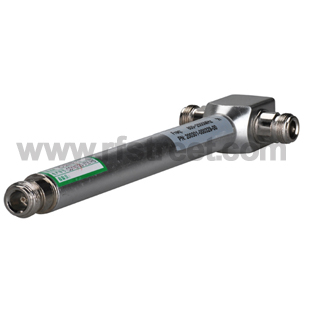

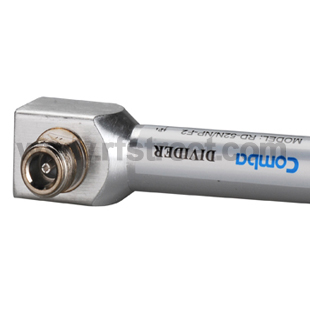

800-2500MHz 2-way Cavity RF Power Splitter/Power Divider
Model: PD-1547
Description
Product parameters:
800-2500MHz 2-way Cavity RF Power Splitter/Power Divider
Using microstrip structures, in-band flatness is good, high isolation, insertion loss is small, standing wave good performance, easy installation, for cellular mobile communications and spread spectrum communications in indoor distribution system.
ELECTRICAL SPECIFICATIONS:
type:2-way Cavity Power Divider
Frequency: 800 ~ 2500MHz
Insertion loss(distribution ratio)-db:<=3.1DB
Isolation(dB): ≤27
Nominal Impedance(Ω): 50
VSWR :1:1.2
Max. Power(MAX)(W) :50
connector : N female
Mechanical Characteristics:
Environment temperature -℃ :-25~+55
Relative humidity -% :5~95
Size -mm :210mmX58mmx22mm
Weight：179g
PS. Power splitter box body surface polishing
Frequency: 800 ~ 2500MHz
Insertion loss(distribution ratio)-db:<=3.1DB
Isolation(dB): ≤27
Nominal Impedance(Ω): 50
VSWR :1:1.2
Max. Power(MAX)(W) :50
connector : N female
Relative humidity -% :5~95
Size -mm :210mmX58mmx22mm
Weight：179g
PS. Power splitter box body surface polishing
