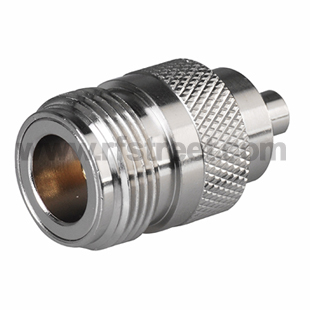

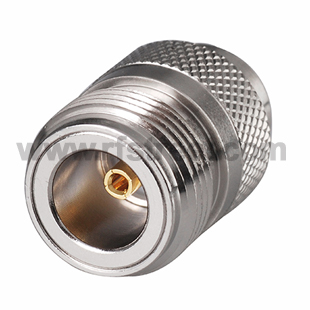

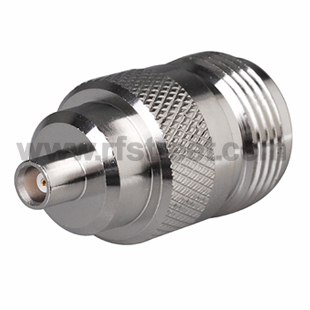

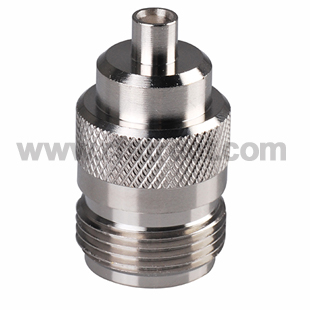

N-MCX adapter N Jack to MCX Jack straight RF adapter
Model: AD-M03SJ-N01SJ-44BS00
    QTY 1+10+100+500+ More
    Price each. $7.42$7.05$6.30$5.86 Ask
    Saving% 0% 5%15%21% Ask
Qty:
Description
Product parameters:
    Series: Between Series N-MCX  Impedance: 50 Ohm
    Convert From (Adapter End): N Jack, female Pin  Convert To (Adapter End): MCX Jack, female Pin
    Style: straight  Plating: Nickelplated
    Mounting Type: Free Hanging  :

Specification:


1.RF adapters cost effective solution, which is high quality and quick
combinations by simply screwing two connectors together, with no
soldering or crimping required.


2.RF adapter product line includes in-series RF adapters design and
between series adapter designs as well as T and Cross RF adapters.


3.Interface types are included in RF adapter ,such as SMA, TNC, N and
BNC,which are available in male, female, plug, jack, receptacle gender,
in 50 Ohm &75 Ohm impedance and in standard polarity or reverse polarity.


4.RF adapters are available in quick disconnect (QD), push-on or standard
interface , straight, 90 degrees versions,as well as bulkhead ,or 4 hole
panel configurations.


5.RF adapters in standard and high performance with brass body .The
stainless steel body will be customized !
