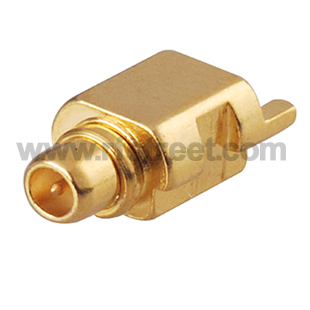

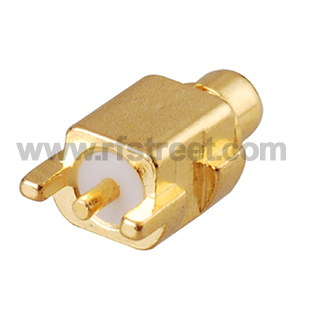

MMCX Edge PCB Mount MMCX Plug Male RF Connector MMCX connector
Model: M01-SPEDM-11BS01
Description
Product parameters:
| Product Series: | MMCX | Product Type: | Edge PCB Mount |
| Body Plating: | Goldplated | Connector Body Style: | Straight |
| Connector Material: | Brass | Contact Plating: | Goldplated |
| Gender: | Plug | Impedance: | 50 Ohm |
MMCX micro-miniature RF connectors are suitable for 50 ohm applications and provide repeatable electronic performance from DC to 6 GHz. The snap-on mating design offers low RF leakage and ease of assembly in dense packaging layouts.
Due to their non-slotted contact , their series connectors can provide a low R.F leakage in R.F circuits & in space critical applications. MMCX type connectors are light weight, compact and reliable.
MCX type connectors enable space reduction over similar SMB/SMC types. MCX connectors are designed to conform to CECC 22220 specifications.
Typical applications for MMCX connectors are PCMCIA cards and other small hand-held communications devices.
