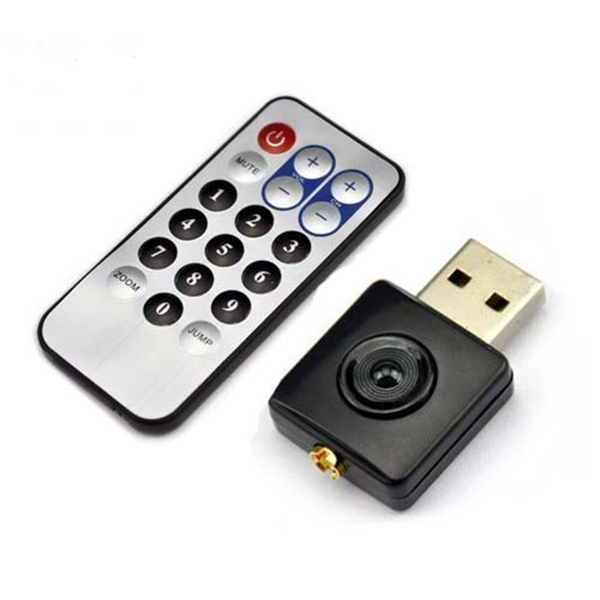

Digital Usb DVB-T+FM+DAB Record Live TV
Model: DA1-2770-M03SP-020-120
    QTY 1+10+100+500+ More
    Price each. $22.27$21.15$18.93$17.59 Ask
    Saving% 0% 5%15%21% Ask
Qty:
Description
Product parameters:

USB DVB-T+FM+DAB


You now have all the options you need for watching your favorite TV shows
and play FM radio and DAB digital radio on your computer.and record them.
and convert them with enclosed converting software. Then you can send them
to your ipod by itunes or other MP4 device,so you can watch them any
where and any time.With the product,you can receord live TV or schedule
recordings using the built-scheuler.the time-shift function also allows
you to pause and instantly replay your favorite scenes.You can listen to
FM audio and digital DAB radio,and record them to WMA audio format into
your computer.Supports windows 7 media center. With the device,you can
watch live TV,and record it by windows 7 media center Uses a converting
software-“Blaze video magic 3.0 “, it can convert your video file as
AVI-MPEG4 ,ASF-MPEG4,MP4-MPEG4(for ipod),PSP-MPEG4,3GP-MPEG4,AVI-DIVX,
AVI-XVID,MOV MPEG4 file,and convert your FM / DAB audio file as MP3 file.
Supports LINUX OS, the driver is in “for linux” folder in CD-ROM.YOU
can also find a help file there.



NOTE:


If you want t listen DAB or DAB+digital radio,you must make sure you have
DAB or DAB+signal,and the results you received depends on the signal strength.


SPECIFICATON

Item name

Usb dvb-t stick with FM&DAB

Interface

USB 2.0 Standard

Recording format

DVBT TV-DVD(MPEG-2),FM radio/DAB radio-WMA

Converting format

Video:AVI-MPEG4,ASF-MPEG4,MP4-MPEG4(for ipod)
PSP-MPEG4,3GP-MPEG4,AVI-DIVX,AVI-XVID,MOV-MPEG4
Audio:MP3

Input

75 Ohm IEC(Din) Connector

output

A type usrb male connect

Receiving frequency

DVBT:48.25 ~863.25MHZ
FM radio: 87.5~108MHZ
DAB radio: L-Band-1452960~1490624KHZ
VHF—174928~ 239200KHZ

TV system

Full DVB-T and DAB compliant

Punctured codes

1/2,2/3,3/4,,4/5,5/6 and 7/8

bandwidth

6/7/8 MHZ auto select for DVB-T

Power supply

Usb bus

Consumed power

≤1.5W

TV Player software

Newsoft presto! PVR

weight

100g

Cable length

One available usb 2.0 port
Pentium4 cpu or above
512MB RAM or above
Graphics card supports DirictX 9.0C
1GB free HDD space
CD-ROM for installation
Windows XP, VISTA,SEVEN,LINUX

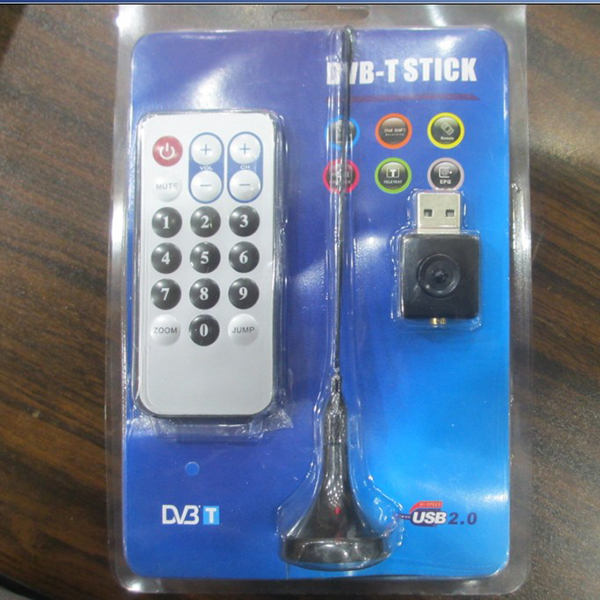

USB DVB-T stick with FM&DAB device,portable antenna,remote controller,quick installation guide,software CD(includes driver,application and manual)
