Coverage:500 square meters (1700 square feet)

Model:GSM-980
Up-link Frequency: 890-915MHz
Down-link Frequency: 935-960MHz
Gain:Up Link: 65dB, Down Link: 70dB
In-band Ripple: <=3 dB
Spurious emission of out-band: <-27dBm
Impedance: 50 ohm
Power supply : DC 12V (AC 220V power adapter provided)
Working temperature: -10℃ to +60℃
Humidity: 5-95%

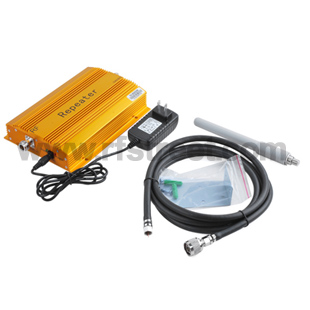

Package

A 70 dB GSM Cell Phone Repeater

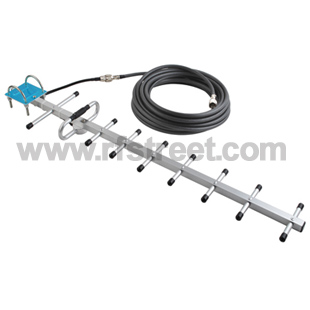

A high gain 12dB Yagi outdoor antenna ( upgraded free of charge ) with 10 meter cable (mounting bracelet included)

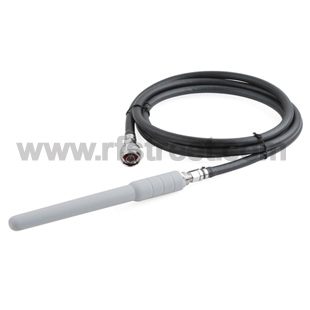

An indoor 3.5dB omni-directional antenna with 2-meter standard cable
A 220V AC power adapter for the Repeater unit

How to set

The item includes everything you need for the installation: a Repeater, an outdoor high gain Yagi antenna with mounting bracket , an indoor antenna, cables and an AC power supply adapter.

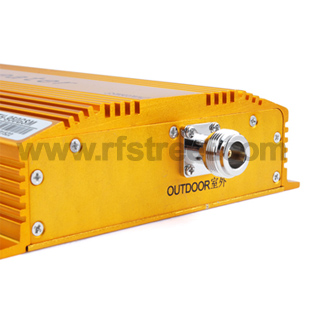

The Repeater has three connectors: 1. a DC connector for a DC 12V input. 2. A N-Type RF connector for connecting to an indoor antenna. 3. A N-Type connector for connecting to an outdoor antenna.

The installation is simple and no configuration or tuning is required. Install the Yagi and aerial antennas outdoor and indoor respectively, connect the cables and power, and go!

How Large An Improved Cellular Signal Coverage Area

The 70dB amplifier kit was scaled for areas such as an office up to 500 square meter (1,700 square feet). With a very good outside signal, improved cellular coverage may be found in several rooms closest to the desktop antenna. For larger areas, contact us for other larger Amplifiers.

Important Note: If, outside the building, your signal is very weak (less than 2-3 bars) or non existent, the amplifier will most likely not be effective. Use a directional high gain antenna instead.

Please Note:This item will be ship via EMS shipping way,5-7 working days arrive,if you need other delivery ways,please contact us before you bid!!!

Notes : Please kindly know that this repeater do not ship to Australia address.Sorry to bring the inconvenience.
