RF adapters cost effective solution, which is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required.
RF adapter product line includes in-series RF adapters design and between series adapter designs as well as T and Cross RF adapters.
Interface types are included in RF adapter ,such as SMA, TNC, N and BNC,which are available in male, female, plug, jack, receptacle gender, in 50 Ohm &75 Ohm impedance and in standard polarity or reverse polarity.
RF adapters are available in quick disconnect (QD), push-on or standard interface , straight, 90 degrees versions,as well as bulkhead ,or 4 hole panel configurations.
RF adapters in standard and high performance with brass body .The stainless steel body will be customized !
| Family |
Coaxial, RF Adapter KIt |
| Series |
RF Adapter Kit SMA-N |
| Type |

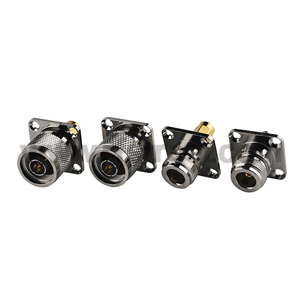

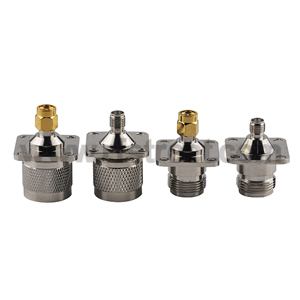

1. Adapter SMA Plug to N Jack flange adapter (AD-N01FJ-S01FP-41BS00)
2. Adapter SMA Plug to N Plug flange adapter (AD-N01FP-S01FP-41BS00)
3. Adapter SMA Jack to N Plug flange adapter (AD-N01FP-S01FJ-41BS00)
4. Adapter SMA Jack to N Jack flange adapter (AD-N01FJ-S01FJ-44BS00) |
| Plating |
Nickel-plated or Gold-plated |
| Style |
Straight |
| Mounting Type |
Free Hanging |
