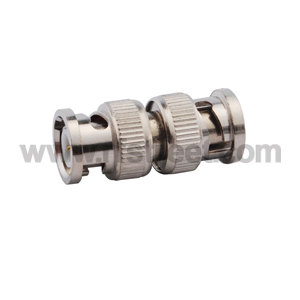

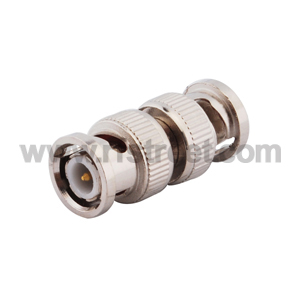

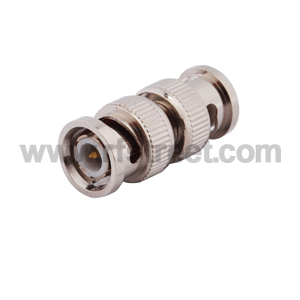

BNC adapter BNC Plug to Plug Straight
Model: AD-B01-PP-44BS00
Description
Product parameters:
| Series: | BNC | Impedance: | 50Ω |
| Frenquency Range: | DC-3GHz | VSWR @ 1GHz: | < 1.3:1 |
| IL @ 1GHz: | < 0.20dB | Operating Voltage Max(AC): | 500V peak |
| Center Contact Resistance: | ≦1.5mΩ | Outer Contact Resistance: | ≦0.2mΩ |
| Insulation Resistance: | ≧5000mΩ | Dutability (Mating): | ≦500 cycles |
| Body / Plating: | Brass / Nickel | Center Contact / Plating: | Brass / Golden |
| Insulator: | PTFE | Operating Temperature: | -55 °C to +155°C |
|
Family |
Coaxial, RF - Adapters-BNC |
|---|---|
|
Series |
IN-Series |
|
Convert From (Adapter End) |
BNC Plug |
|
Convert To (Adapter End) |
BNC Plug |
|
Impedance |
50 Ohm |
|
Style |
Straight |
|
Features |
- |
|
Mounting Type |
Free Hanging |
