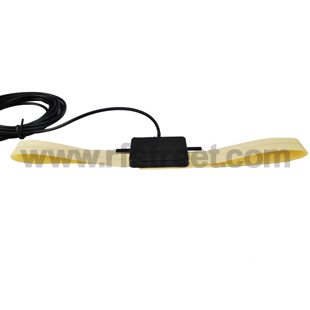

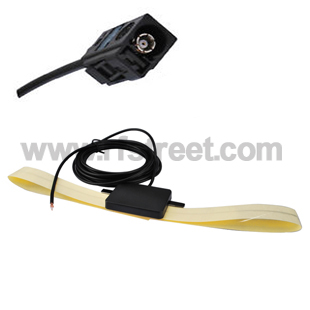

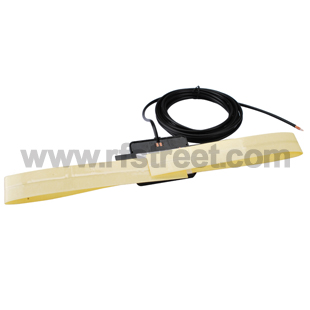

DAB/DAB+car radios aerial internal glass mount of Fakra connector for Alpine Ezi-DAB
Model: DB1-2368-F03ASJ-100-300
Description
Product parameters:
| Product Type: | DAB active antenna | Input impedance: | 50Ω |
| Frequency Range: | 174-237Mhz/1452-1492Mhz | V.S.W.R: | ≤1.5 |
| Gain: | 10 dBi | Polarization: | Linear |
| Connector: | Fakra A female or customize | Radiation: | omnidirectional |
| Cable Length: | RG174 3m | Power: | 50W |
| Mounting: | Adhesive | Housing: | Black |
| Storage Temperature: | 45'c to+85'c | Operating Temperature: | 45'c to+85'c |
| weight: | 0.084kg | : |
Advantages:
DAB/DAB+/DMB-A compatible
Exceptional value.
Easy-fit.
No holes required.
Neat and unobtrusive.
strong signal receiving function, good directivity.
Listing Suitable for the following DAB radios：
Alpine Ezi-DAB
pure Highway 300Di
Cautions:
Unsuitable for use on reflective coated or heated screens.
Once it has been permanently installed, this aerial can only be returned for refund if it proves faulty. It is possible, however, for you to test this aerial to your satisfaction by temporarily fixing it in place with sticky tape.
