Product parameters:

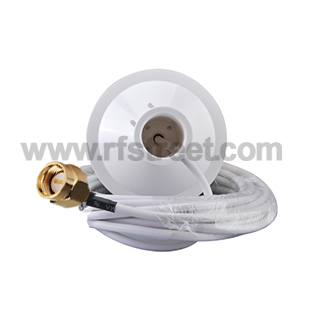

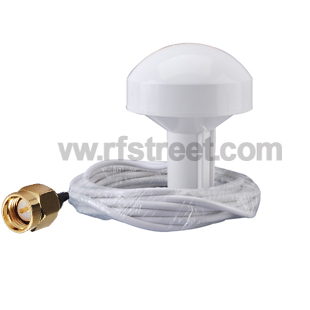

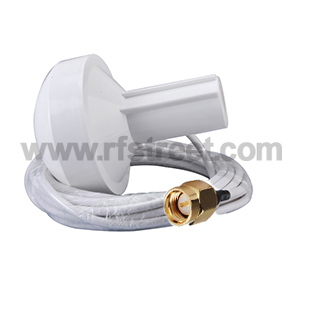

| Product Type: | GPS Antenna | V.S.W.R: | <1.5 |
| Center Frequency: | 1575mhz+/-5 MHZ | Band Width: | CF±5MHz |
| Cable: | SYV-50-3 | Impendence: | 50 ohm |
| Cable length: | 5M | Mounting: | screw thread connection ( G3/4 ) |
| Connector: | SMA male plug or customize | : |
Characteristic:
1 Dieletric Antenna
Center frequency 1575mhz+/-5 MHZ
V. S. W. R <1.5
Band width CF±5MHz
Impendence 50 ohm
gain ≥28DB
Polarization RHCP
2 LNA/Filter
Lna gain(without cable) 42±2dB
Filter Insertion Loss ＜3dB
Noise figure ＜1.3
Current Consumption 18~35mA
Dc voltage 3~5V DC
3 Mechanical
Weight 335g
Cable SYV-50-3
Cable Length 5 meter ,(Optional 10meter ,contact us firstly)
Connector SMA male default /BNC/TNC/FME/MCX in straight or right angle please give us some notes if the antenna connector is chosen.Tks!
Mounting base screw thread connection ( G3/4 )
4 Environmental Specifications
Working temp -40~+60
Storage temp - 50~+85
Vibration sine sweep 1g(0-p)10~50~10hz each axis
Humidity 95%~100%rh
Weatherproof 100%
