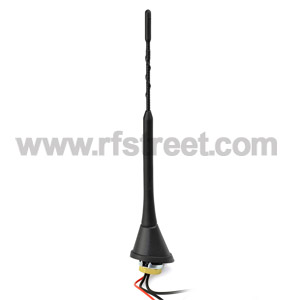

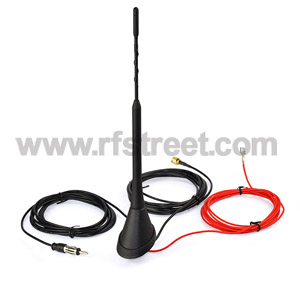

Product parameters:
| Bar Length: | Approx. 23 cm | gain approx.: | 10 dB |
| Antenna Angle: | Approximately 75 ° | antenna base with sealing - Dimensions: | 58 x 45x 270 mm |
| Handle Material: | Rubber/fibreglass - Antenna rod | Mechanical Cable: | RG174 |
| Cable Length: | 5M | DAB Antenna Connector: | FME |
| AM/FM Antenna Connector: | DIN | Mounting Method: | Screw |
Bar Length: Approx. 23 cm

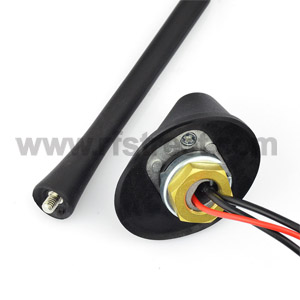

Base: 58 x 45x 270 mm
Antenna Angle: Approximately 75 °
Supply Voltage：12V DC
Current Consumption：40mA

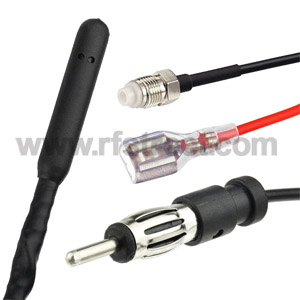

DAB connector: FME(F)
FM /AM connector:DIN
Mechanical Cable: RG174
Cable Length:5M
Mounting Method:Screw
Impedance: 50 ohm
Working Frequency: 170MHz～240MHz (Band III)
1452MHz～1492MHz (L-Band)
Package included:1pcs DAB car Aerial
Advantages:
High quality, top performance, roof mount, amplified DAB/FM/AM car aerial.
Mast easily unscrews for carwash, etc.
Can also be fitted to wing, boot lid etc. (at slight expense of performance).
If your vehicle currently has a built-in-the glass or similar FM/AM aerial, installing the 'DAB/FM/AM bundle will probably improve your FM/AM reception as well.
Cautions:
UNSUITABLE for replacement of bee-sting aerials incorporating GSM, GPS or rear-screen washer jet (some Vauxhalls etc).
Must not be mounted on a panel whose underside is exposed to the elements.
5m DAB cable is captive, i.e. permanently attached.
Max panel thickness: 2.5mm.
