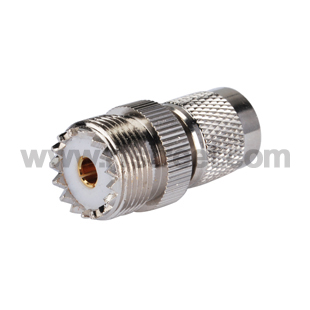

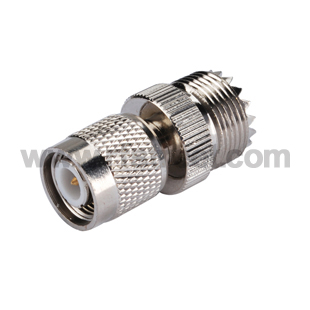

TNC-UHF RF Adapter TNC Plug to UHF Jack straight British Version
Model: AD-T01SP-U01SJ-44BS00
Description
Product parameters:
| Operating Temperature: | -55 °C to +155°C | Impedance: | 50Ω |
| Frenquency Range: | DC-300MHz | VSWR @ 1GHz: | < 1.3:1 |
| IL @ 1GHz: | < 0.3dB | Operating Voltage Max(AC): | 500V peak |
| Center Contact Resistance: | ≦1.5mΩ | Outer Contact Resistance: | ≦0.5mΩ |
| Insulation Resistance: | ≧5000mΩ | Dutability (Mating): | ≦500 cycles |
| Body Plating: | Nickelplated | Contact Plating: | Goldenplated |
| Connector Material: | Brass | : |
