890-960/1850-1990MHz 2DB GSM Antenna with SMA Male Connector
Model: GM1-839-S01SP-020-300
Description
Product parameters:
| Product Type: | Antenna | Input impedance: | 50 |
| Frequency Range: | 890-960/1850-1990MHZ | V.S.W.R.: | ≤2 |
| Gain: | 2dBi | Polarization: | Vertical |
| Bandwidth: | Directionality: | omnidirection | |
| Connector: | SMA male | Power: | 20 W |
| Cable Type: | RG174 3m | Vertical panel Beam Width: | 360° |
| Weight: | vertical panel Beam Width: | 90° | |
| feture: | Operating Temperature: | 40 to 85° |

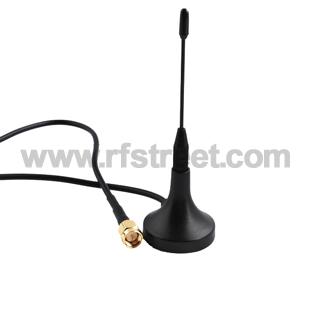

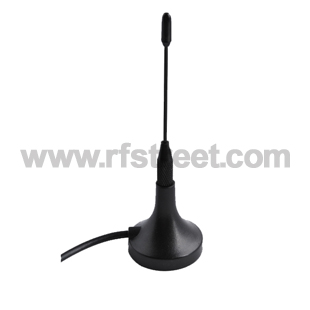

It is a 2dBi gain design. Requires coaxial connector. It requires any conenctor you can attach to an RG-174 cable. This is a Magnetic mini antennas Good for all modes CDMA,GSM, 3G, UMTS, including data PCMCIA cards.Can be used in a vehicle, at home, or anywhere else since it's light and portable.
Magnetic mini antennas, 1/4 wave type.. Very powerful magnet for its size. Cell phone bands in the USA 850MHz and ISM 915Mhz. Good for all modes AMPS, TDMA, CDMA, GSM, EVDO including data PCMCIA cards.
CDMA,GSM, 3G/UMTS Application
DCS Communication Application
