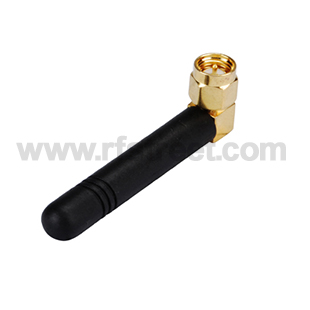

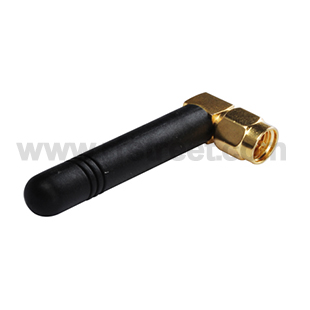

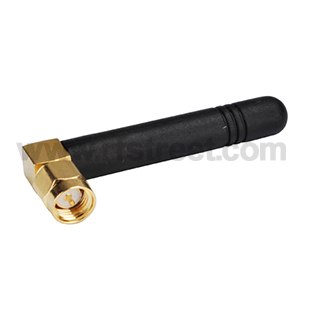

1710-1990MHz 1.5dbi GSM/UMTS/HSPA/CDMA Antenna with SMA RA connector
Model: GM2-809-S01RA1-015
    QTY 1+10+100+500+ More
    Price each. $2.00$1.80$1.62$1.45 Ask
    Saving% 0% 10%19%28% Ask
Description
Product parameters:
    Product Type: Antenna  Input impedance: 50
    Frequency Range: 824-960Mhz/1710-1990Mhz  V.S.W.R.: ≤2
    Gain: 1.5 dbi  Polarization: Vertical
    Bandwidth:   Directionality: omnidirection
    Connector: SMA male right angle  Power: 50 w
    Antenna Length: 50mm   Vertical panel Beam Width: 360°
    Weight: 6g  vertical panel Beam Width: 90°
    feture:   Operating Temperature: 40 to 85°

This compact GSM900/1800 GSM1900 omnidirectional "rubber-duck" GSM antenna provides broad coverage. It is a coaxial sleeve design with an omni-directional pattern.



This antenna was also designed to transmit on the 900mhz frequencies with a top end transmission not to exceed 25 watts.Works for the current Mobile Communication.



This antenna features a right angle SMA connector, allowing them to be used vertically, at a right angle. It is suitable as a replacement RF antenna for many access points and radios that are equipped with SMA connectors such as mobile, wireless pay phone, fixed commercial phone, PCMCIA card, navigation device, vehicle wireless device, etc.



Quad band for use in wireless communication. Portable Antenna Quad Band 850/900/1800/1900

The connectors / adapters we can offer you:
