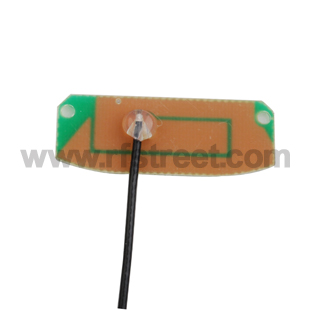

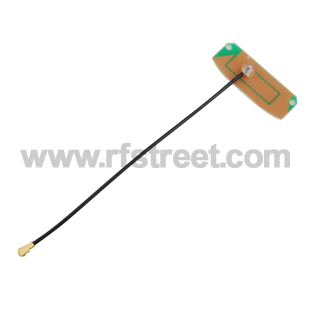

GSM Internal Antenna 2 dbi 824-960MHz 1710-1990MHz IPX(yellow)
Model: GM3-1212-U04RJ-020-10
Description
Product parameters:
| Product Type: | Antenna | Input impedance: | 50 |
| Frequency Range: | 824-960MHz/1710-1990MHz | V.S.W.R.: | ≤2.0 |
| Gain: | 2 dbi | Polarization: | Vertical |
| Bandwidth: | ±5MHz | Directionality: | omnidirection |
| Connector: | IPX/u.fl | Power: | 60 w |
| Cable Length: | IPX 10cm | Vertical panel Beam Width: | 360° |
| Weight: | vertical panel Beam Width: | 90° | |
| Dimension: | 36x13x1mm | Operating Temperature: | -40 to 85° |
This compact GSM internal antenna provides broad coverage.
This antenna was also designed to transmit on the 1920~2170MHZ frequencies.Works for the current Mobile Communication.

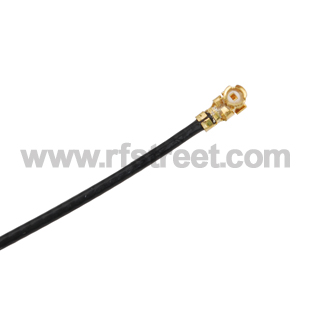

This antenna features an IPX/u.fl connector, allowing them to be used internal.
It is suitable as a replacement RF antenna for many access points and radios that are equipped with IPX connectors such as mobile, wireless pay phone, fixed commercial phone, PCMCIA card, navigation device, vehicle wireless device, etc.
The connectors / adapters we can offer you:
