Product parameters:
| Product Type: | 3G Antenna | Input impedance: | 50Ω |
| Frequency Range: | 850-960/1710-2170MHz | V.S.W.R.: | ≤1.5 |
| Gain: | 9 dBi | Polarization: | Vertical |
| Connector: | RP-SMA male | Radiation: | omnidirectional |
| Cable Length(M): | 2.5m | Power: | 50W |
| Cable Type: | RG174 | Operating Temperature: | -45 to +75℃ |
| Weight(kg): | 0.121kg | Storage Temperature: | -45 to +75℃ |
| Housing: | Black | : |

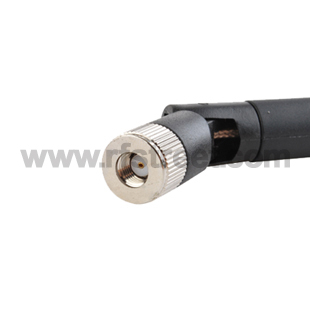

High Quality 3G 9dB Booster Antenna,can be taken apart
Install by simply unscrewing your current antenna, and attach this High Gain antenna in its place.
There are no drivers to install, and no modifications to your setup are necessary.
Please check if the connector does fit your router before bid!
Frequency Range(MHz)850-960/1710-2170
GSM/GPRS/EDGE 850/900/1800/1900MHz
HSUPA/HSDPA/UMTS 2100MHz/900MHz
CDMA 1900 MHz
VSWR< 1.5 : 1 max
Gain :9 dBi
Impedance 50 Ohm
Polarization Linear Vertical
Light Weight
Omnidirectional Antenna
Polarization Vertical
Diameter: 13.5mm
With 2.5 meter pigtail
Antenna connector RP-SMA male
SMA/SSMB/CRC9/TS9/MS147/MCX/FME/MC-Card..and so on.,please give us notes if the connector is chosen !
Colour: black
Cable:RG174
Working Temperature : -20~+55 deg C
The connectors / adapters we can offer you:
