Product parameters:
| Product Type: | 3G Antenna | Input impedance: | 50Ω |
| Frequency Range: | 824-960/1710-2200 MHz | V.S.W.R.: | ≤1.5 |
| Gain: | 9 dbi | Polarization: | Vertical |
| Connector: | SMA male | Radiation: | omnidirectional |
| Cable Length(M): | 3m | Power: | 60W |
| Cable Type: | RG174 | Operating Temperature: | -45 to +75℃ |
| Weight(kg): | 0.232kg | Storage Temperature: | -45 to +75℃ |
| Mounting: | Magnetic | Housing: | Black |

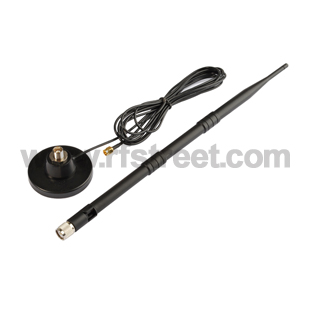

High Quality 3G 9dB Booster ,can be taken apart

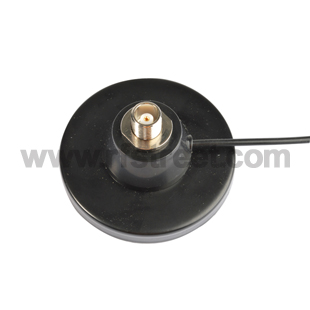

Magnetic Stand design for easy to install on window side or top of the ceiling to gain more signals
Install by simply unscrewing your current antenna, and attach this High Gain antenna in its place.
There are no drivers to install, and no modifications to your setup are necessary.
Please check if the connector does fit your router before bid!
Specification:
9dBi gains
Frequency range : 824-960/1710-2200 MHz
VSWR< 1.5 : 1 max
Impedance 50 Ohm
Polarization Linear Vertical
Light Weight
Omnidirectional Antenna
Polarization Vertical
Diameter: 13.5mm
With 3 meter cable
Antenna connector :SMA/SSMB/CRC9/TS9/MS147/FME//MC-Card..and so on.,
please give us notes if the connector is chosen !
Colour: black
Mounting:Magnetic Base
Cable:RG174
The connectors / adapters we can offer you:
