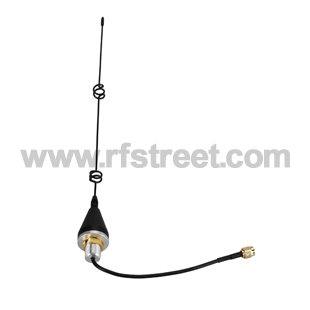

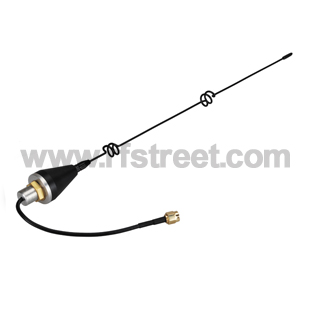

850/900/1800/1900/2100Mhz GSM/UMTS/3G Car antenna
Model: 3A1-1909-S01SP-050-10
Description
Product parameters:
| Product Type: | 3G Antenna | Input impedance: | 50Ω |
| Frequency Range: | 850-960/1710-2170mhz | V.S.W.R.: | ≤1.5 |
| Gain: | 5 dbi | Polarization: | Vertical |

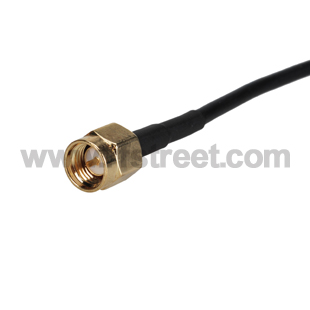

| Connector: | SMA male | Radiation: | omnidirectional |
| Cable Length(M): | 10cm | Power: | 60W |
| Cable Type: | RG174 | Operating Temperature: | -45 to +75℃ |
| Weight(kg): | Storage Temperature: | -45 to +75℃ | |
| Mounting: | Screw | Housing: | Black |
Frequency（MHz）：850/900/1800/1900/2100
EDGE / GPRS / GSM - 850/900/1800/1900 MHz
HSUPA/HSDPA/WCDMA 2100M/900MHz
Bandwidth（MHz）：90/280
VSWR ≤1.5
Gain（dBi）：5
Max Input power（W）：60
Input Impedance（Ω）：50
Polarization：Vertic
Size（mm）：24(Base)×290(Height)
Cable Length（cm）：10cm (other length please email me firstly,fox example 200,300,500 etc.)
Cable Type：RG174
Connector：SMA/SSMB/CRC9/TS9/MS147/MC-Card/MCX/FME/..and so on.,please give us notes if the connector is chose !
Notes:If you choose the SSMB/CRC9/TS9/MS147/MC-Card,The extra adapter or pigtail will be included in the package to fix your devices !
Mounting：Screw
Housing：Black
Storage Temperature：-45℃ to+75℃
Operating Temperature：-45℃ to+75℃
The connectors / adapters we can offer you:
