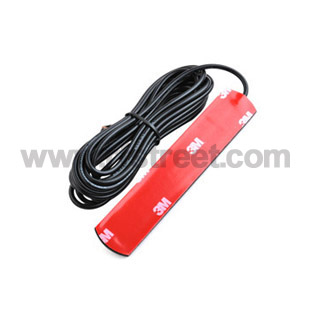

2DB GSM/CDMA/UMTS/3G antenna for USB Modems/Routers/PCMCIA Cards /Devices
Model: 3A3-1312-F03DSJ-020-300
Description
Product parameters:
| Product Type: | Mobile Broadband Antenna | Input impedance: | 50Ω |
| Frequency Range: | 824～960/1710～1990/1920～2170 MHz | V.S.W.R.: | ≤2.0 |
| Gain: | 2 dbi | Polarization: | Vertical |
| Connector: | Fakra | Radiation: | omnidirectional |
| Cable Length: | 3m | Power: | 60W |
| Cable Type: | RG174 | Operating Temperature: | -45 to +75℃ |
| Weight: | 0.056kg | Storage Temperature: | -45 to +75℃ |
| Mounting: | Adhesive | Housing: | Black |
Frequency（MHz）824～960 MHz/1710～1990 MHz/1920～2170 MHz
GSM 850/900: 824 - 960Mhz
GSM 1800/1900:1710 - 1990Mhz
HSPA/HSUPA/HSDPA/UMTS/3G 2100Mhz : 1920 - 2170 MHz
CDMA 1900 : 1710 - 1990Mhz
V.S.W.R（5m）：≤2.0：1
Gain（Zenith）：2 dBi
Impedance：50 Ω
Cable：RG174 3m/5m or others

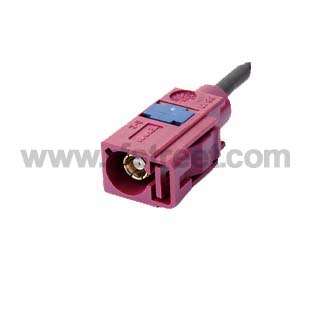

Connector：Fakra D female (default) SMA/SSMB/CRC9/TS9/MCX/FME/MC-Card/MS-147..and so on.,please give us notes if the connector is chosen !
Plastic Housing:Black
Mounting:Adhesive
The connectors / adapters we can offer you:
