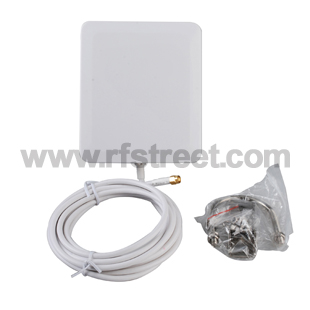

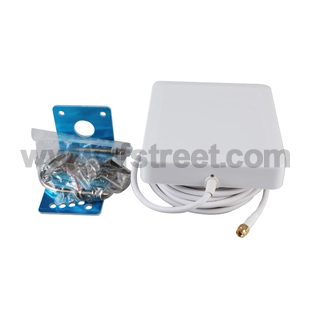

2300-2700Mhz 10dbi Panel mount 4G LTE antenna RP-SMA Male
Model: LAP-2589-S02SP-100-300
Description
Product parameters:
| Product Type: | 4G LTE antenna | Input impedance: | 50Ω |
| Frequency Range: | 2300-2700 MHz | V.S.W.R.: | ≤1.5 |
| Gain: | 10 dbi | Polarization: | Vertical |

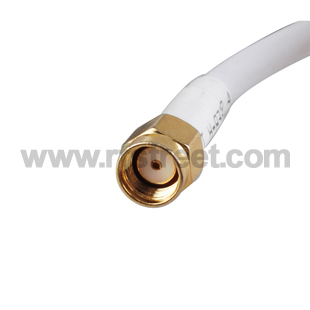

| Connector: | RP-SMA male | Radiation: | omnidirectional |
| Cable Length: | 3m | Power: | 50W |
| Cable Type: | RG58 | Operating Temperature: | -40 to +60℃ |
| Weight: | 0.42kg | Storage Temperature: | -40 to +60℃ |
| Mounting: | Colour: | white |
Frequency range (MHz) 2300-2700
Polarization: Vertical
Gain (dbi):10
Horizontal beamwidh: 50
Vertical beamwidth: 50
F/B ratio (dB): ≥25
Input Impedance: 50 Ohm
VSWR: ≤1.5
Max power (W): 50
Lightning protection: DC Ground
Antenna dimension (mm): 140*120*25
Antenna weight (kg): 0.42
Radome material: ABS
Radome color: white
Mechanical tilt: 0～10
Operating Temperature: -40～60
Rated Wind Velocit(m/s): 60
Mounting hardware(mm): 35～50
