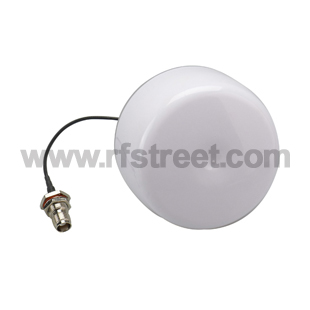

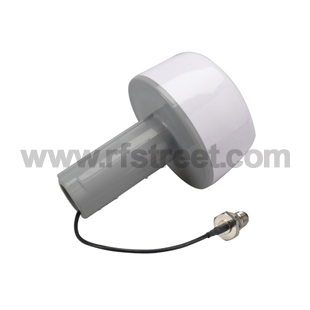

GPS Active Navigation Antenna 3 meter TNC Jack
Model: GA14-300-T01BO
Price: $ 23.87
Description
Product parameters:
| Product Type: | GPS Antenna | V.S.W.R: | <1.5 |
| Center Frequency: | 1575.42mhz+/-1 MHZ | Band Width: | CF±5MHz |
| Cable: | RG174 | Impendence: | 50 ohm |
| Cable length: | 3M | Mounting: | Magnetic base |
| Connector: | TNC | Housing: | Black |
Dielectric antenna specification
Center frequency 1575.42mhz+/-1 MHZ
V. S. W. R <1.5
Band width CF±5MHz
Impendence 50 ohm
gain 5Dbi
Polarization RHCP
Lna specification
Lna gain(without cable) 42±2dB
Filter Insertion Loss ＜3dB
Noise figure ＜1.3
Current Consumption 18~35mA
Dc voltage 3~5V DC
Mechanical specification
Weight 221G
Cable RG174
Cable Length 3 meter ,(Optional 10meter ,contact us firstly)
Connector TNC/SMA/SMB/SMC/BNC/FME/MCX /MMCX /Fakra/AVIC/WICLIC in straight or right angle please give us some notes if the antenna connector is chosen.Tks!
Mounting base Screw
Environmental specification
Working temp -40~+85
Storage temp -40~+100
Vibration sine sweep 1g(0-p)10~50~10hz each axis
Humidity 95%~100%rh
Weatherproof 100%
